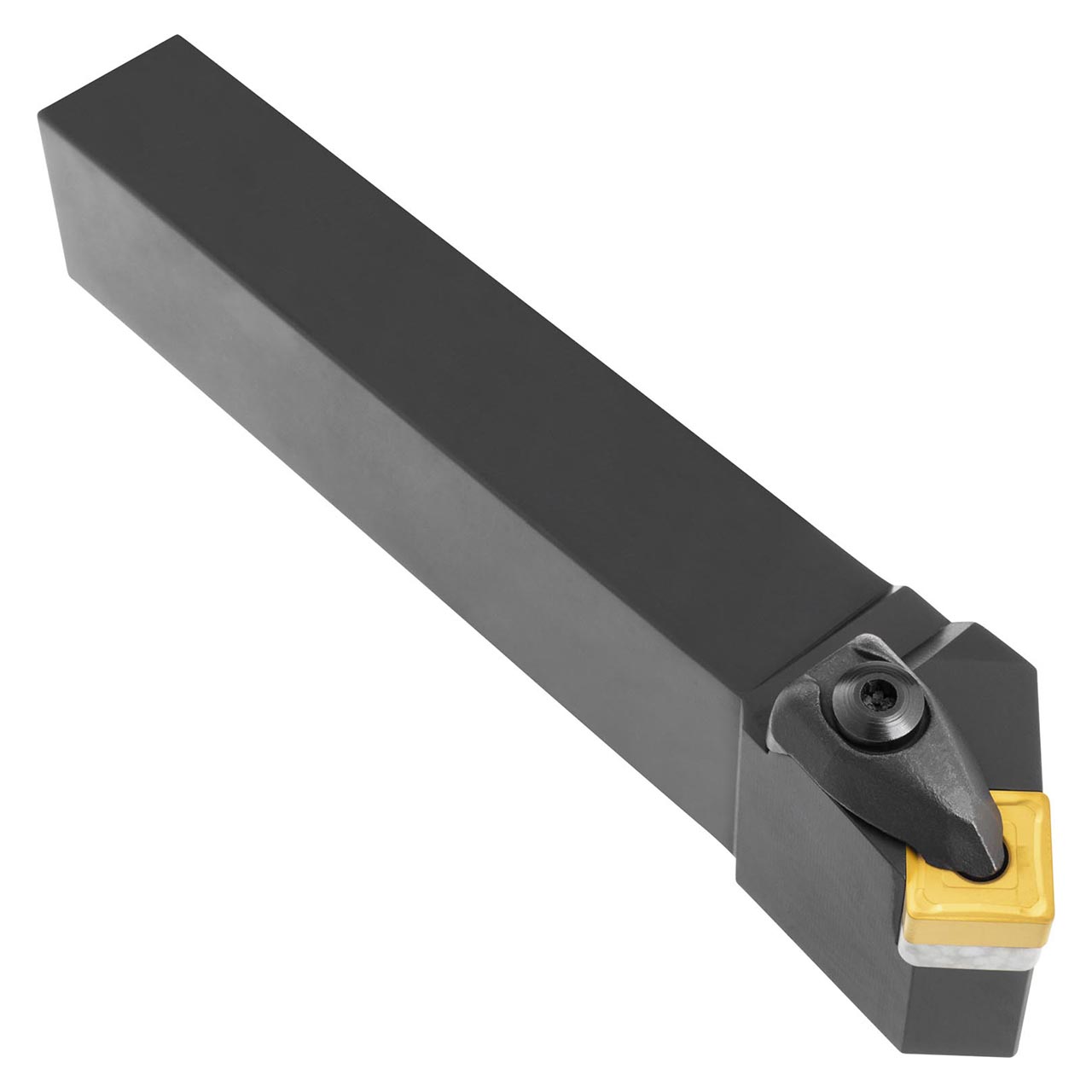

Double clamp turning tool for holding a square negative insert with an inscribed circle diameter of 5/8'', 1/4'' thick (ANSI designation SN.. 54. ), left hand 45 Degree side cutting with off-set shank, 1.1/4'' tool height x 1.1/4'' width x 6'' long for chamfering, taper turning, single and multi-directional copy turning, face turning without shoulder and longitudinal turning without shoulder.
Product Specifications
| EDP Number | 6788601 |
| Functional Height (Inch) | 1.25" |
| Functional Width (Inch) | 1.5" |
| Orthogonal Rake Angle | -8 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Width (Inch) | |
| Overall Length (mm) | 163 mm |
| Overall Length (Inch) | 6.413" |
| Functional Length (Inch) | 6" |
| Head Length (Inch) | 1.303" |
| Clamping Type Code | System D |
| Functional Width Secondary (Inch) | 1.098" |
| Direction of Tool | Left |
| Country of origin | Czech Republic |
