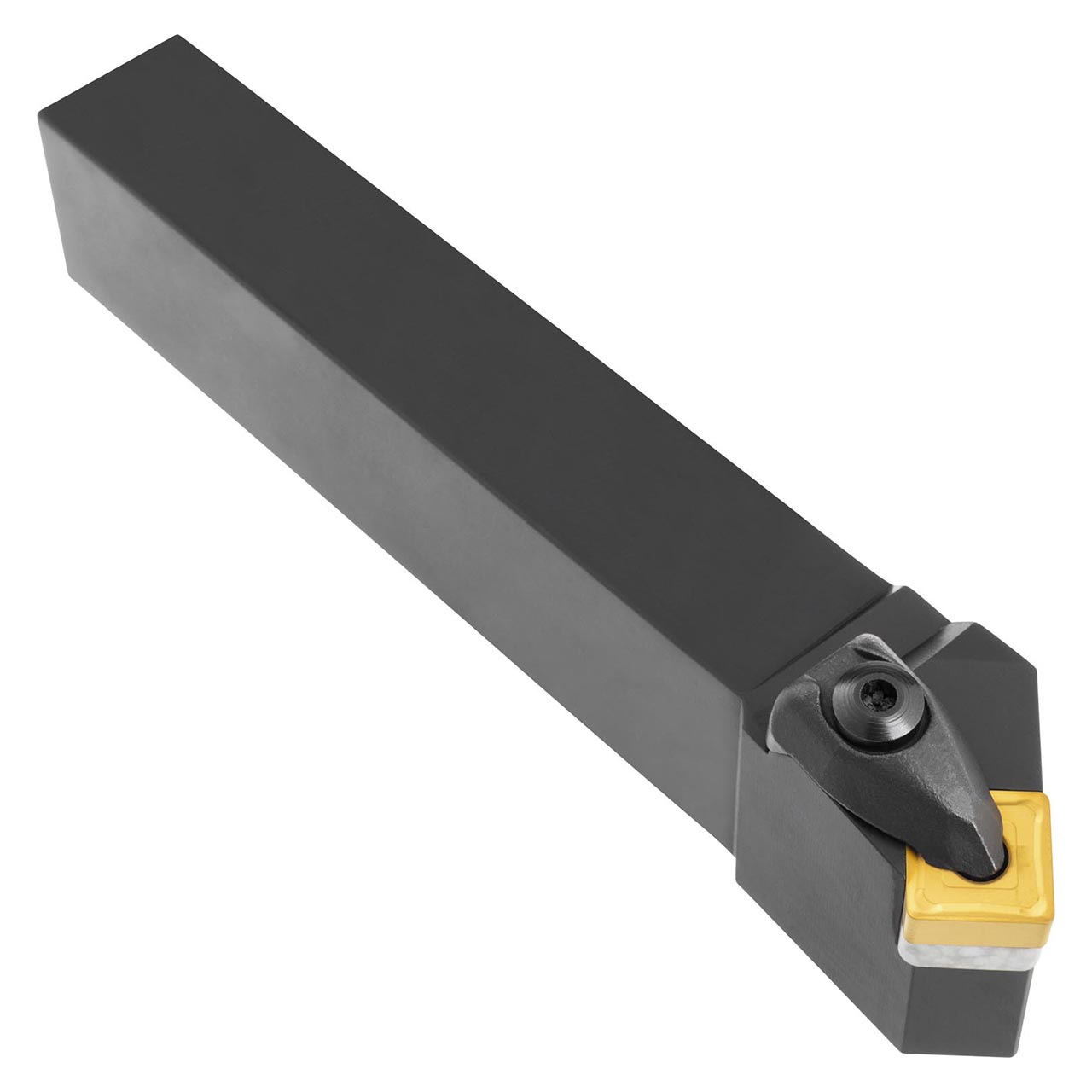

Double clamp turning tool for holding a square negative insert with an inscribed circle diameter of 15.875 mm, 6.35 mm thick (ISO designation SN.. 1506.. ), left hand 45° side cutting with off-set shank, 32 mm tool height x 25 mm width x 170 mm long for chamfering, taper turning, single and multi-directional copy turning, face turning without shoulder and longitudinal turning without shoulder.
Product Specifications
| EDP Number | 7028446 |
| Functional Height (mm) | 32 mm |
| Functional Width (mm) | |
| Functional Width Secondary (mm) | 21.8 mm |
| Orthogonal Rake Angle | -8 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (mm) | 32 mm |
| Shank Width (mm) | 25 mm |
| Overall Length (mm) | 180.2 mm |
| Overall Length (Inch) | 7.094" |
| Functional Length (mm) | 170 mm |
| Head Length (mm) | 34.9 mm |
| Clamping Type Code | System D |
| Direction of Tool | Left |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Rake Angle:
-8
Shank Width (Inch):
63/64"
Shank Width (Decimal Inch):
0.9800"
Shank Width (mm):
25mm
Shank Height (Inch):
117/64"
Shank Height (Decimal Inch):
1.2600"
Shank Height (mm):
32mm
