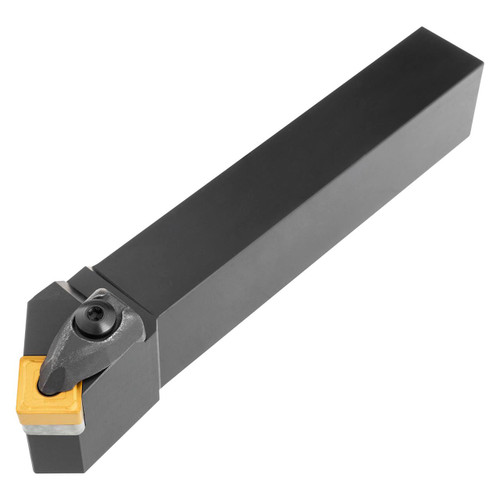

Double clamp turning tool for holding a square negative insert with an inscribed circle diameter of 1/2'', 3/16'' thick (ANSI designation SN.. 43. ), right hand 45 Degree side cutting with off-set shank, 3/4'' tool height x 3/4'' width x 4.1/2'' long for chamfering, taper turning, single and multi-directional copy turning, face turning without shoulder and longitudinal turning without shoulder.
Product Specifications
| EDP Number | 6788604 |
| Functional Height (Inch) | 0.75" |
| Functional Width (Inch) | 1" |
| Orthogonal Rake Angle | -8 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Width (Inch) | |
| Overall Length (mm) | 124 mm |
| Overall Length (Inch) | 4.88" |
| Functional Length (Inch) | 4.5" |
| Head Length (Inch) | 1.13" |
| Clamping Type Code | System D |
| Functional Width Secondary (Inch) | 0.74" |
| Direction of Tool | Right |
| Country of origin | Czech Republic |
