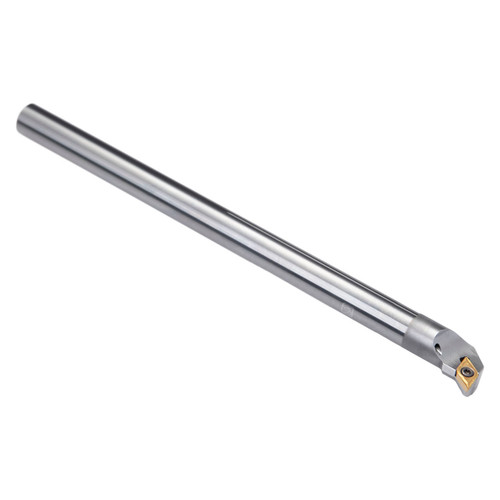

Screw clamp boring bar for holding a 55 Degree rhombus positive insert with an inscribed circle diameter of 6.35 mm, 2.38 mm thick (ISO designation DC.. 0702.. ), left hand 93 Degree end cutting with off-set shank, carbide with coolant hole, 10 mm diameter x 150 mm long for taper boring, single and multi-directional copy boring and longitudinal boring with and without shoulder.
Product Specifications
| EDP Number | 6760498 |
| Functional Height (mm) | 5.6 mm |
| Functional Width (mm) | |
| Coolant Supply Property | 1 |
| Inclination Angle | -5 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 10 mm |
| Connection Diameter (Inch) | 0.394" |
| Minimum Bore Diameter (mm) | |
| Functional Length (mm) | 150 mm |
| Direction of Tool | Left |
| Country of origin | Czech Republic |
