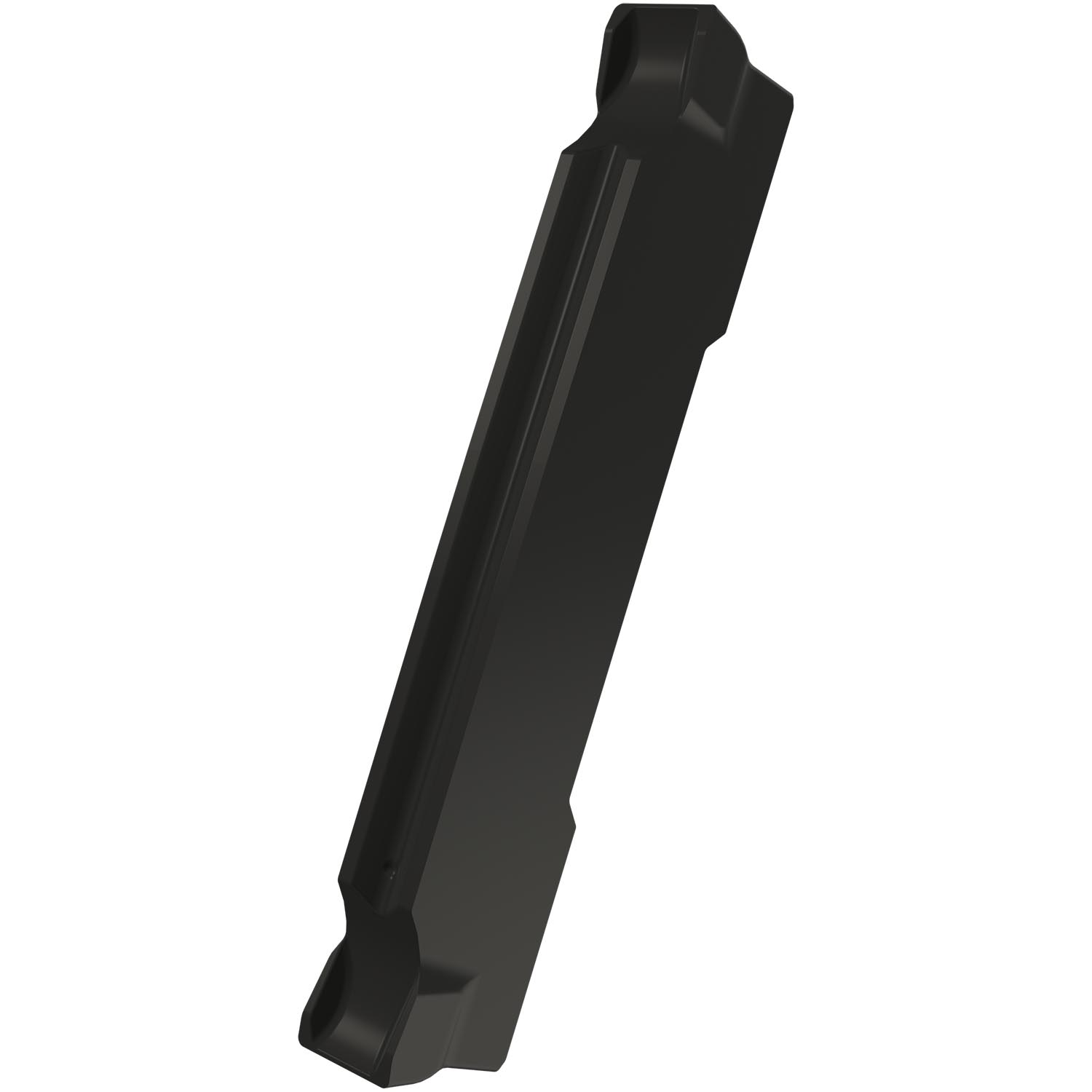

Double ended parting and grooving insert, 25 mm long with a 3 mm cutting width and 0.2 mm corner radii, a cutting width tolerance of ± 0.05 mm and chip-breaker PR with direct pressed edge design, grade T7325 MT-CVD coated functionally graded WC-Co carbide within ISO-grade range P15-P35 for machining of steel in combination with PRAMET GL3..SF(RL) EXT and GL3-S.. B parting and grooving tools.
Product Specifications
| EDP Number | 7802926 |
| Cutting Width (Inch) | 0.118" |
| Cutting Width (mm) | 3 mm |
| Cutting Width Lower Tolerance (mm) | -0.05 mm |
| Cutting Width Upper Tolerance (mm) | 0.05 mm |
| Coating Property | 1 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Insert Length (mm) | 25 mm |
| Insert Length (Inch) | 0.984" |
| Corner Radius (mm) | 0.2 mm |
| Corner Radius (Inch) | 0.008" |
| Coating Process | MT-CVD |
| Coating | T7325 |
| Surface Color | Black |
| Cutting Width Lower Tolerance (Inch) | -0.002" |
| Cutting Width Upper Tolerance (Inch) | 0.002" |
| Chipbreaker Manufacturer's Designation | PR |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Cutting Width (Inch):
7/64"
Cutting Width (Decimal Inch):
0.1180"
Cutting Width (mm):
3mm
Finish/Coating:
T7325
interval quantity:
10
