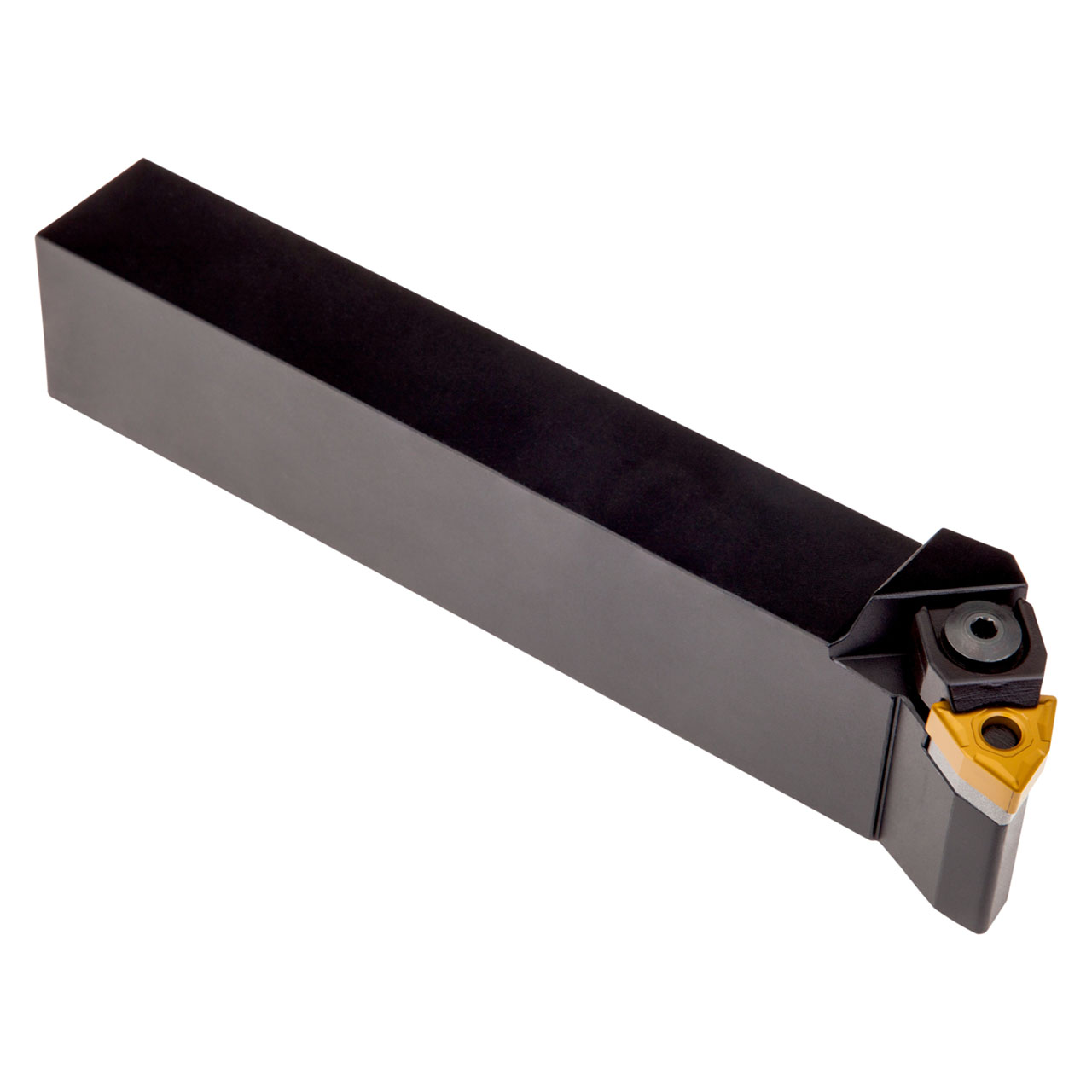

Multi-lock turning tool for holding a 80 Degree trigon negative insert with an inscribed circle diameter of 12.7 mm, 4.76 mm thick (ISO designation WN.. 0804.. ), left hand 95 Degree side and end cutting with off-set shank, 25 mm tool height x 25 mm width x 150 mm long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder.
Product Specifications
| EDP Number | 6757244 |
| Functional Height (mm) | 25 mm |
| Functional Width (mm) | |
| Orthogonal Rake Angle | -6 |
| Inclination Angle | -6 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (mm) | 25 mm |
| Shank Width (mm) | 25 mm |
| Functional Length (mm) | 150 mm |
| Head Length (mm) | 32 mm |
| Direction of Tool | Left |
| Country of origin | Czech Republic |
