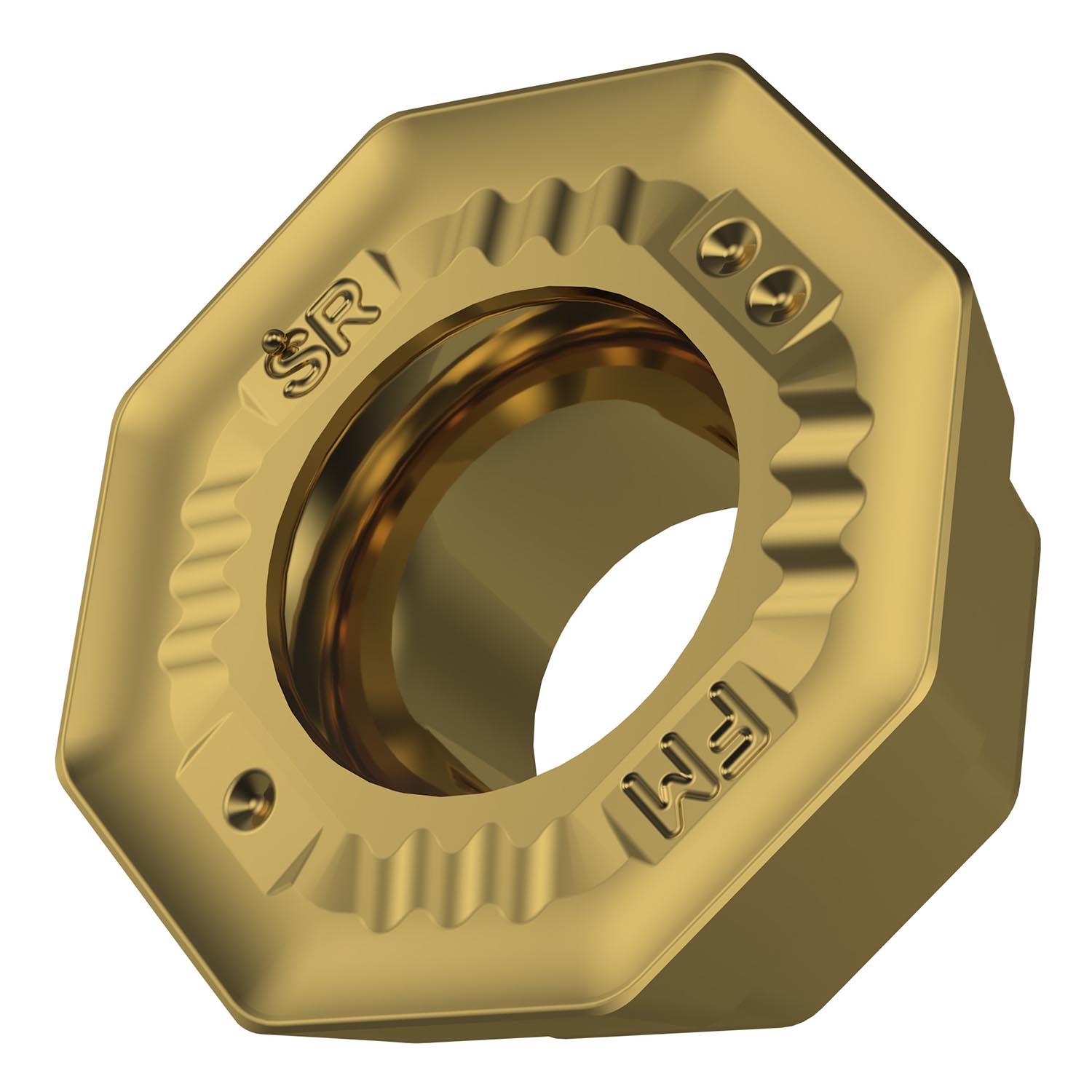

Pramet ODKT 0505ADSR-FM:M8330 | 12.7 mm Diameter x 5.56 mm Thickness M8330 Grade Milling Insert

$14.98
Brand:
Pramet
interval quantity:
10
SKU:
23150489
Weight:
0.25 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping
Single-sided milling insert ODKT 0505 with chip-breakers, octagonal for a maximum depth of cut of 2.7 mm, with 0.8 mm corner radius, an indexing accuracy according to ISO-tolerance class-K and FM geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel with copy face mills SOD05.

Product Specifications
EDP Number7447916
Maximum Depth of Cut (mm)2.7 mm
Max Depth of Cut (Inch)0.106"
Coating Property1
Fixing Hole Diameter (mm)5.5 mm
Fixing Hole Diameter (Inch)0.217"
Inscribed Circle Diameter (mm)12.7 mm
Inscribed Circle Diameter (Inch)0.5"
Insert Thickness (mm)5.56 mm
Insert Thickness (Inch)0.219"
Wiper Edge Length (mm)1 mm
Wiper Edge Length (Inch)0.039"
Corner Radius (mm)0.8 mm
Corner Radius (Inch)0.031"
Coating ProcessPVD
CoatingM8330
Surface ColorGold
Min Depth of Cut (mm)0.3 mm
Min Depth of Cut (Inch)0.012"
Country of originCzech Republic
