Pramet 7447918 | 15.88mm Diameter x 5.56mm Thickness M8330 Grade Milling Insert

$20.45 $15.95
(You save $4.50)
Brand:
Pramet
Finish/Coating:
PVD
Inscribed Circle (Decimal Inch):
0.6250"
Inscribed Circle (mm):
15.88mm
Thickness (Decimal Inch):
0.2190"
Thickness (mm):
5.56mm
interval quantity:
10
SKU:
23150498
UPC:
Weight:
0.02 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

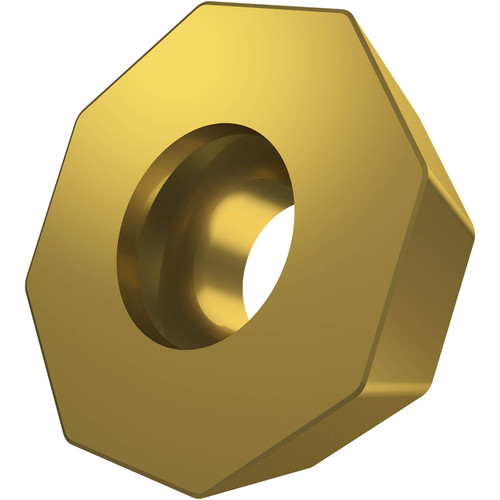

Single-sided milling insert ODMT 0605 with chip-breakers, octagonal for a maximum depth of cut of 3.1 mm, with an indexing accuracy according to ISO-tolerance class-M, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with face mills SOD06D.

Product Specifications
EDP Number7447918
Maximum Depth of Cut (mm)3.1 mm
Max Depth of Cut (Inch)0.122"
Coating Property1
Fixing Hole Diameter (mm)5.5 mm
Fixing Hole Diameter (Inch)0.217"
Inscribed Circle Diameter (mm)15.875 mm
Inscribed Circle Diameter (Inch)0.625"
Insert Thickness (mm)5.56 mm
Insert Thickness (Inch)0.219"
Coating ProcessPVD
CoatingM8330
Surface ColorGold
Min Depth of Cut (mm)1 mm
Min Depth of Cut (Inch)0.039"
Country of originCzech Republic
