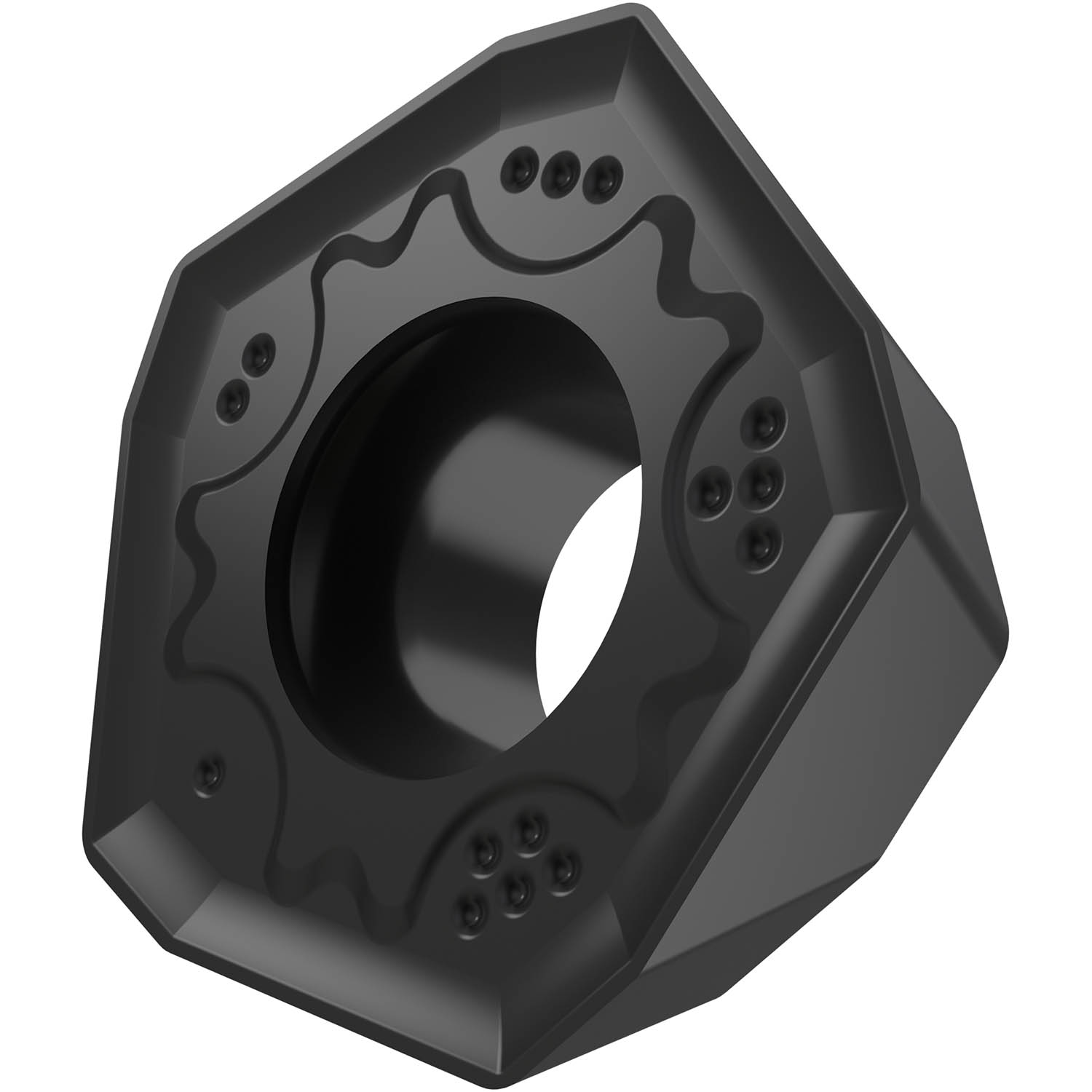

Pramet PDKX 0905ZEER-FM:M8345 | 0.217" Diameter x 0.215" Thickness Milling Insert

$19.62
Ships:
From Partner Facility
Ships:
From Partner Facility
interval quantity:
10
SKU:
23150769
Weight:
0.32 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping
Single-sided milling insert PDKX 0905, pentagonal for a maximum depth of cut of 2.0 mm, with an indexing accuracy according to ISO-tolerance class-K and FM geometry with rounded cutting edges, M8345 PVD coated WC-Co carbide within ISO-grade ranges P30-P50 and M30-M40 for machining of steel and stainless-steel with high feed cutters SPD09.

Product Specifications
EDP Number6756072
Maximum Depth of Cut (mm)2 mm
Max Depth of Cut (Inch)0.079"
Coating Property1
Fixing Hole Diameter (mm)5.5 mm
Fixing Hole Diameter (Inch)0.217"
Cutting Edge Length (mm)9 mm
Cutting Edge Length (Inch)0.354"
Inscribed Circle Diameter (mm)13.5 mm
Inscribed Circle Diameter (Inch)0.531"
Insert Thickness (mm)5.47 mm
Insert Thickness (Inch)0.215"
Wiper Edge Length (mm)2 mm
Wiper Edge Length (Inch)0.079"
Coating ProcessPVD
CoatingM8345
Surface ColorPurple - Black
Min Depth of Cut (mm)0.3 mm
Min Depth of Cut (Inch)0.012"
