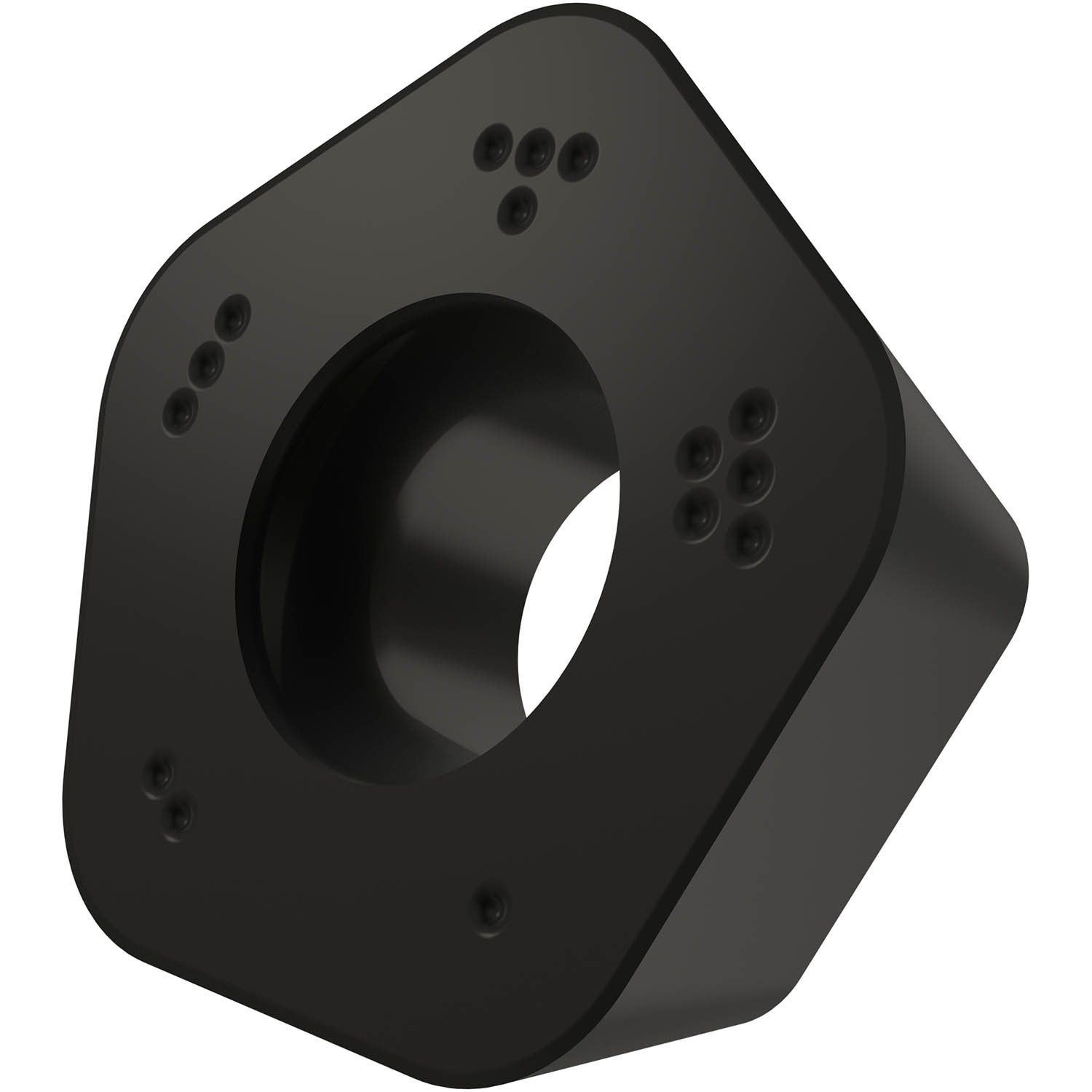

Single-sided milling insert PDMW 0905 with a plane rake surface, pentagonal for a maximum depth of cut of 2.0 mm, with 3.0 mm corner radius, an indexing accuracy according to ISO-tolerance class-M with rounded cutting edges and facet, M9325 MT-CVD coated WC-Co carbide for machining of cast-iron with high feed cutters SPD09.
Product Specifications
| EDP Number | 6756075 |
| Maximum Depth of Cut (mm) | 2 mm |
| Max Depth of Cut (Inch) | 0.079" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 5.5 mm |
| Fixing Hole Diameter (Inch) | 0.217" |
| Cutting Edge Length (mm) | 9 mm |
| Cutting Edge Length (Inch) | 0.354" |
| Inscribed Circle Diameter (mm) | 13.5 mm |
| Inscribed Circle Diameter (Inch) | 0.531" |
| Insert Thickness (mm) | 5.47 mm |
| Insert Thickness (Inch) | 0.215" |
| Corner Radius (mm) | 3 mm |
| Corner Radius (Inch) | 0.118" |
| Coating Process | MT-CVD |
| Coating | M9325 |
| Surface Color | Black |
| Min Depth of Cut (mm) | 0.3 mm |
| Min Depth of Cut (Inch) | 0.012" |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
