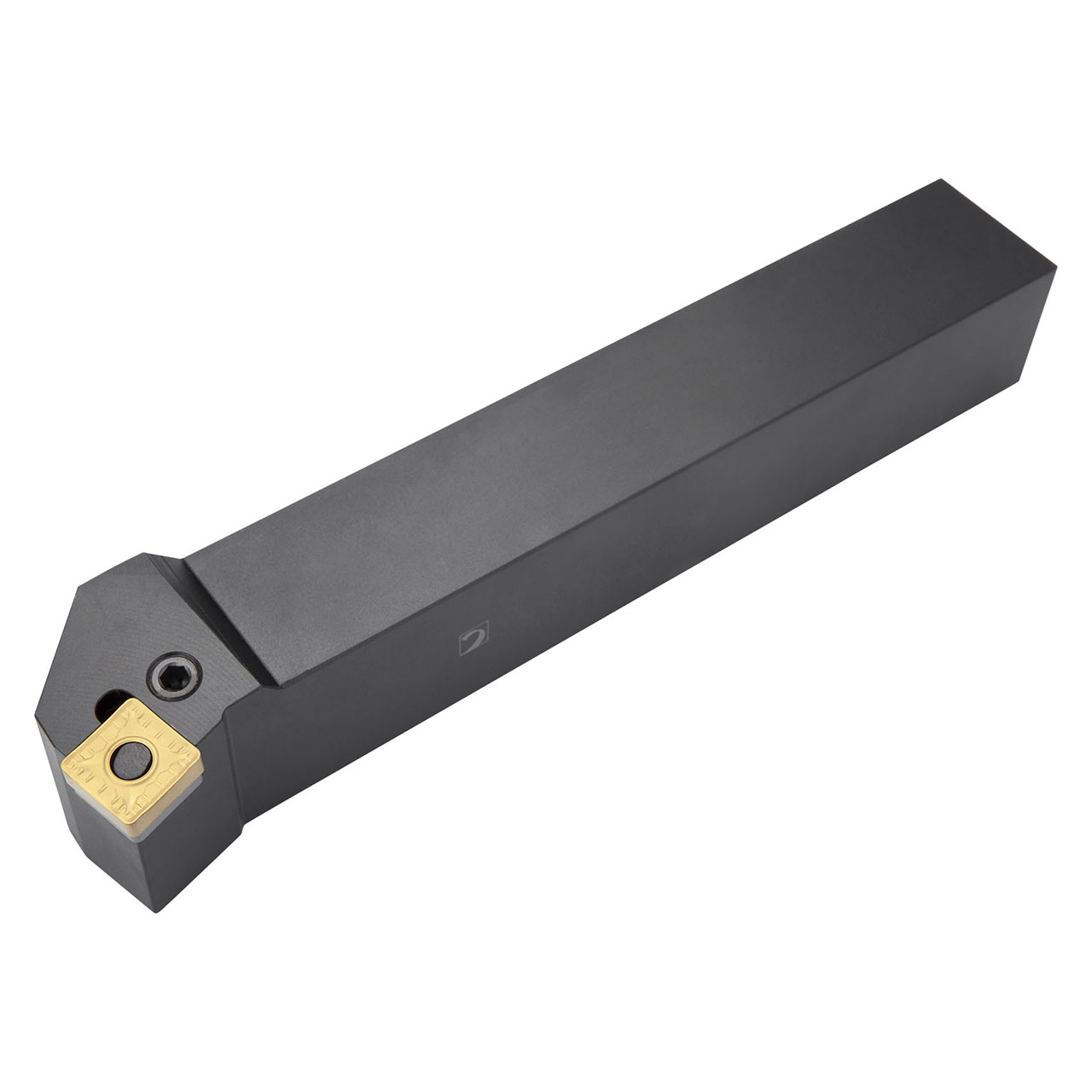

Lever lock turning tool for holding a square negative insert with an inscribed circle diameter of 19.05 mm, 6.35 mm thick (ISO designation SN.. 1906.. ), right hand 75 Degree end cutting with off-set shank, 40 mm tool height x 40 mm width x 250 mm long for face turning without shoulder.
Product Specifications
| EDP Number | 6758445 |
| Functional Height (mm) | 40 mm |
| Functional Width (mm) | |
| Orthogonal Rake Angle | -6 |
| Inclination Angle | -6 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (mm) | 40 mm |
| Shank Width (mm) | 40 mm |
| Overall Length (mm) | 254.6 mm |
| Overall Length (Inch) | 10.024" |
| Functional Length (mm) | 250 mm |
| Head Length (mm) | 45 mm |
| Direction of Tool | Right |
| Country of origin | Czech Republic |
