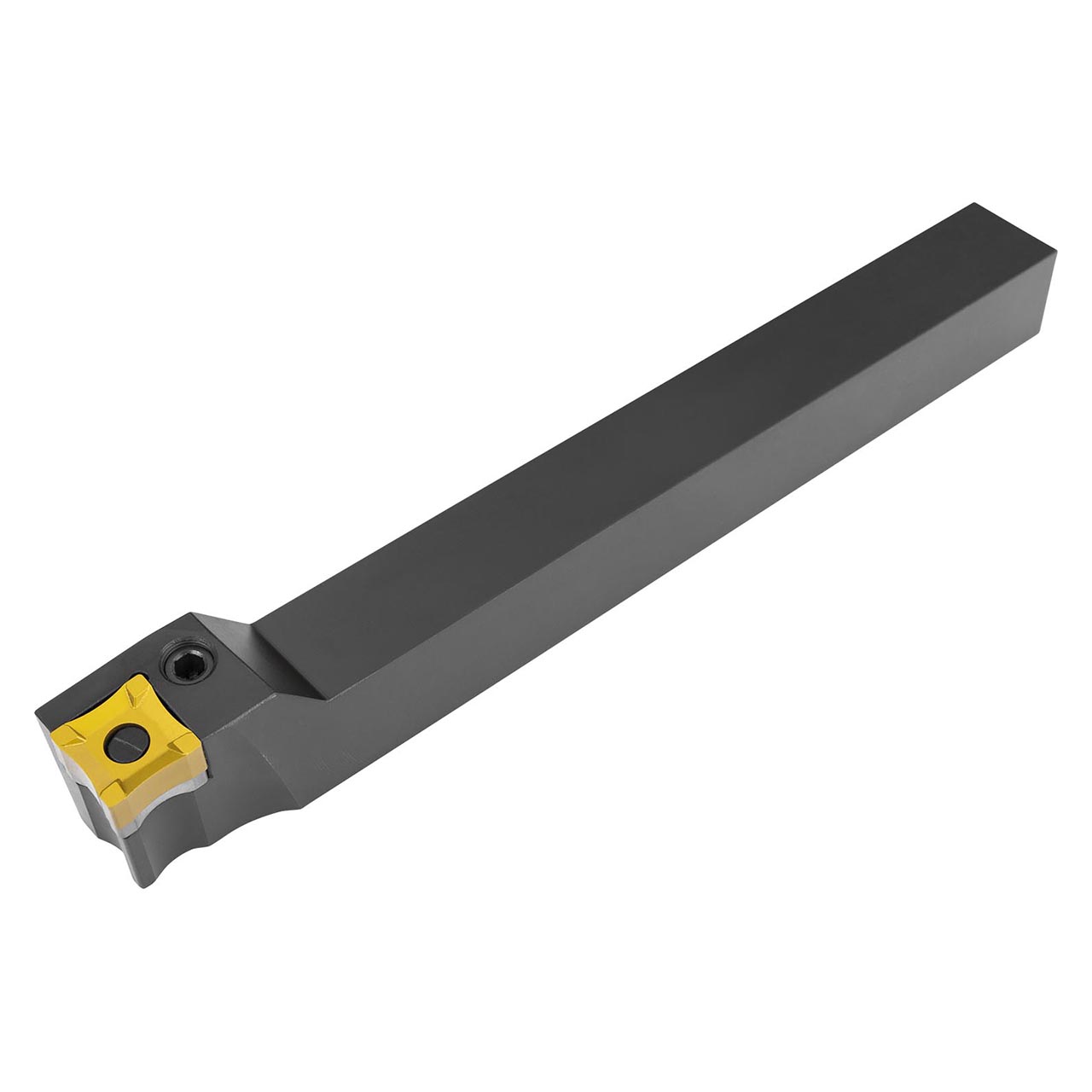

Lever lock scarfing tool with 20° clearance for carrying a square insert with a main cutting edge length of 19.05 mm (designation SNMX 19-R.. ), right handed with insert parallel to the shank, height 25 mm, width 25 mm and 250 mm long for deburring the outside of tubes and pipes.
Product Specifications
| EDP Number | 6759653 |
| Functional Height (mm) | 25 mm |
| Functional Width (mm) | |
| Axial Clearance Angle (mm) | 20 mm |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (mm) | 25 mm |
| Shank Width (mm) | 25 mm |
| Functional Length (mm) | 250 mm |
| Head Length (mm) | 50 mm |
| Hand (Cutting Direction) | Right |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Width (Inch):
63/64"
Shank Width (Decimal Inch):
0.9800"
Shank Width (mm):
25mm
Shank Height (Inch):
63/64"
Shank Height (Decimal Inch):
0.9800"
Shank Height (mm):
25mm
interval quantity:
1
