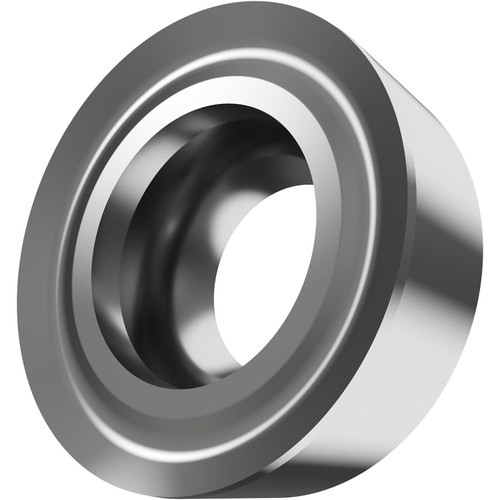

Single-sided positive turning insert, round with 7 Degree clearance, a diameter of 10 mm, 3.18 mm thick, indexing accuracy according to ISO-tolerance class-G, chip-breaker AL with sharp cutting edges, in grade HF7, an uncoated fine grained WC-Co carbide within ISO range N10-N25, for fine to heavy machining of non-ferrous metals.
Product Specifications
| EDP Number | 6751740 |
| Max Depth of Cut (mm) | 4 mm |
| Max Depth of cut (Inch) | 0.157" |
| Body Diameter (Inch) | |
| Fixing Hole Diameter (mm) | 4.4 mm |
| Fixing Hole Diameter (Inch) | 0.173" |
| Insert Diameter (mm) | 10 mm |
| 0.394" | |
| Insert Thickness (mm) | 3.18 mm |
| Insert Thickness (Inch) | 0.125" |
| Coating | HF7 |
| Surface Color | Silver |
| Min Depth of Cut (mm) | 1 mm |
| Min Depth of Cut (Inch) | 0.039" |
| Chipbreaker Manufacturer's Designation | AL |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1250"
Thickness (mm):
3.18mm
interval quantity:
10
