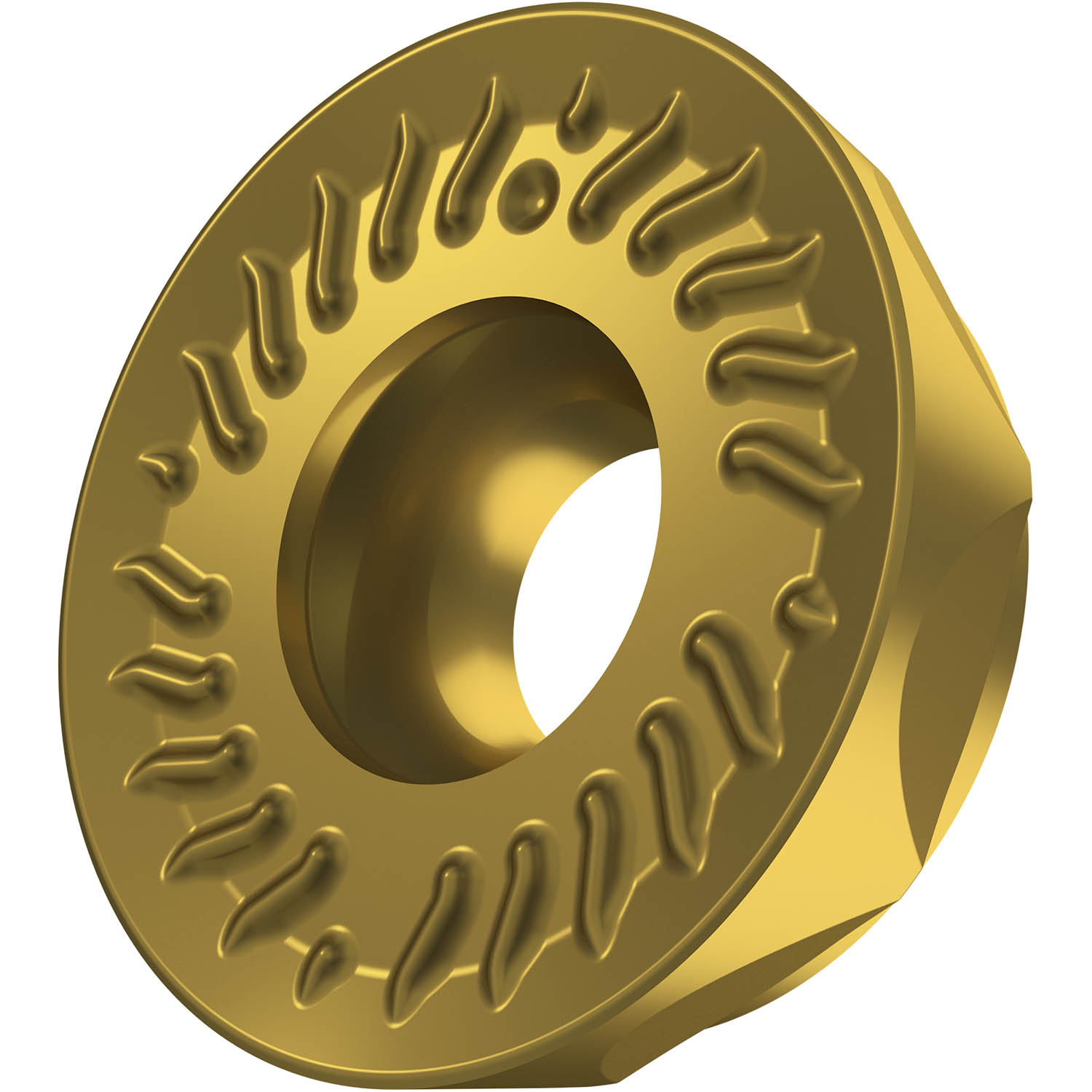

Single-sided milling insert RCMT 2006 with chip-breakers, round for a maximum depth of cut of 10.0 mm, with an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with copy face mills SRC20.
Product Specifications
| EDP Number | 7447956 |
| Maximum Depth of Cut (mm) | 10 mm |
| Max Depth of Cut (Inch) | 0.394" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 6.5 mm |
| Fixing Hole Diameter (Inch) | 0.256" |
| Insert Diameter (mm) | 20 mm |
| Insert Diameter (Inch) | 0.787" |
| Insert Thickness (mm) | 6.35 mm |
| Insert Thickness (Inch) | 0.25" |
| Coating Process | PVD |
| Coating | M8330 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 0.3 mm |
| Min Depth of Cut (Inch) | 0.012" |
