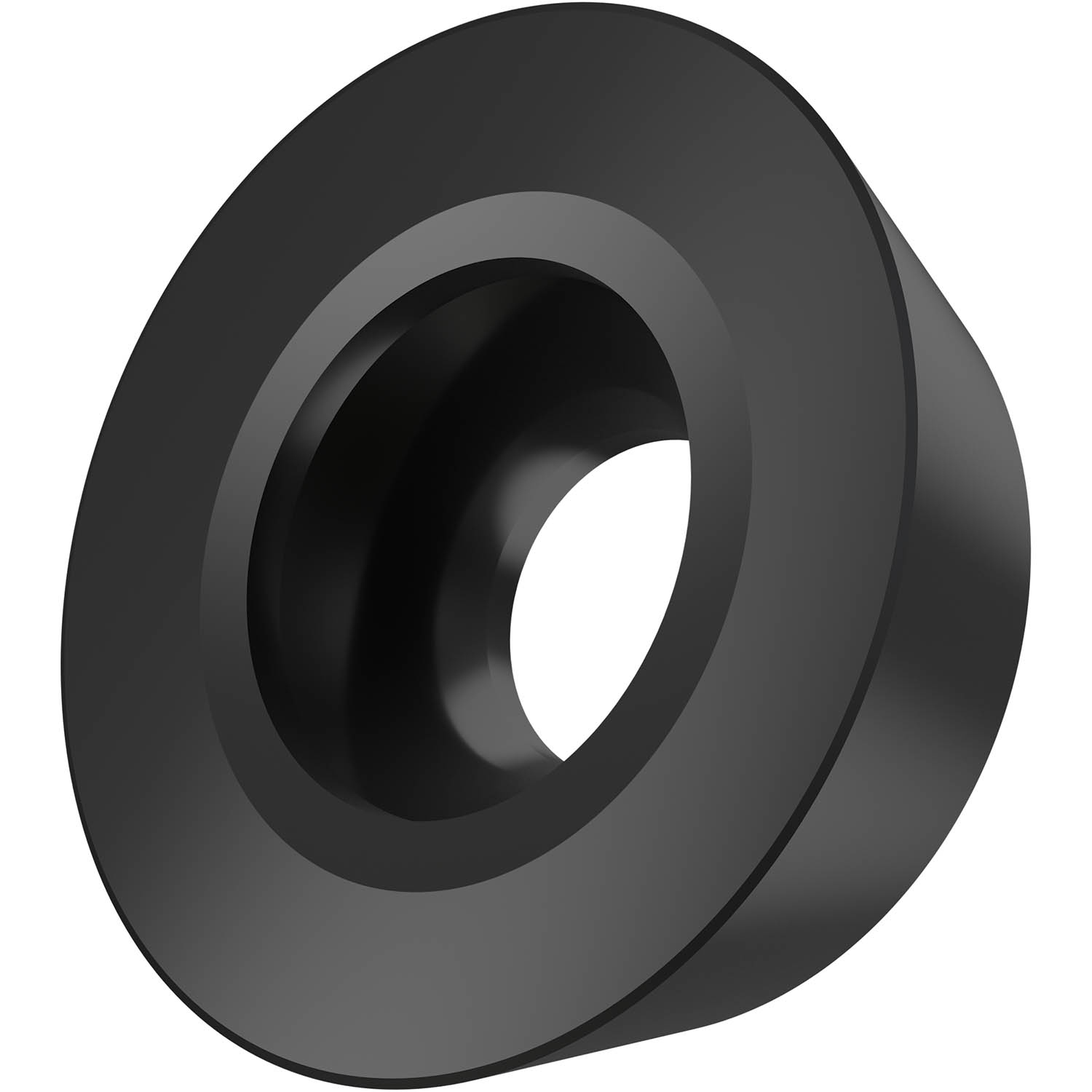

Single-sided milling insert RDGT 0702 with chip-breakers, round for a maximum depth of cut of 2.0 mm, with an indexing accuracy according to ISO-tolerance class-G with cutting edges with facet, M8345 PVD coated WC-Co carbide within ISO-grade ranges P30-P50 and M30-M40 for machining of steel and stainless-steel with copy face mills SRD07.
Product Specifications
| EDP Number | 6755946 |
| Maximum Depth of Cut (mm) | 2 mm |
| Max Depth of Cut (Inch) | 0.079" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 2.8 mm |
| Fixing Hole Diameter (Inch) | 0.11" |
| Insert Diameter (mm) | 7 mm |
| Insert Diameter (Inch) | 0.276" |
| Insert Thickness (mm) | 2.38 mm |
| Insert Thickness (Inch) | 0.094" |
| Coating Process | PVD |
| Coating | M8345 |
| Surface Color | Purple - Black |
| Min Depth of Cut (mm) | 0.3 mm |
| Min Depth of Cut (Inch) | 0.012" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
interval quantity:
10
