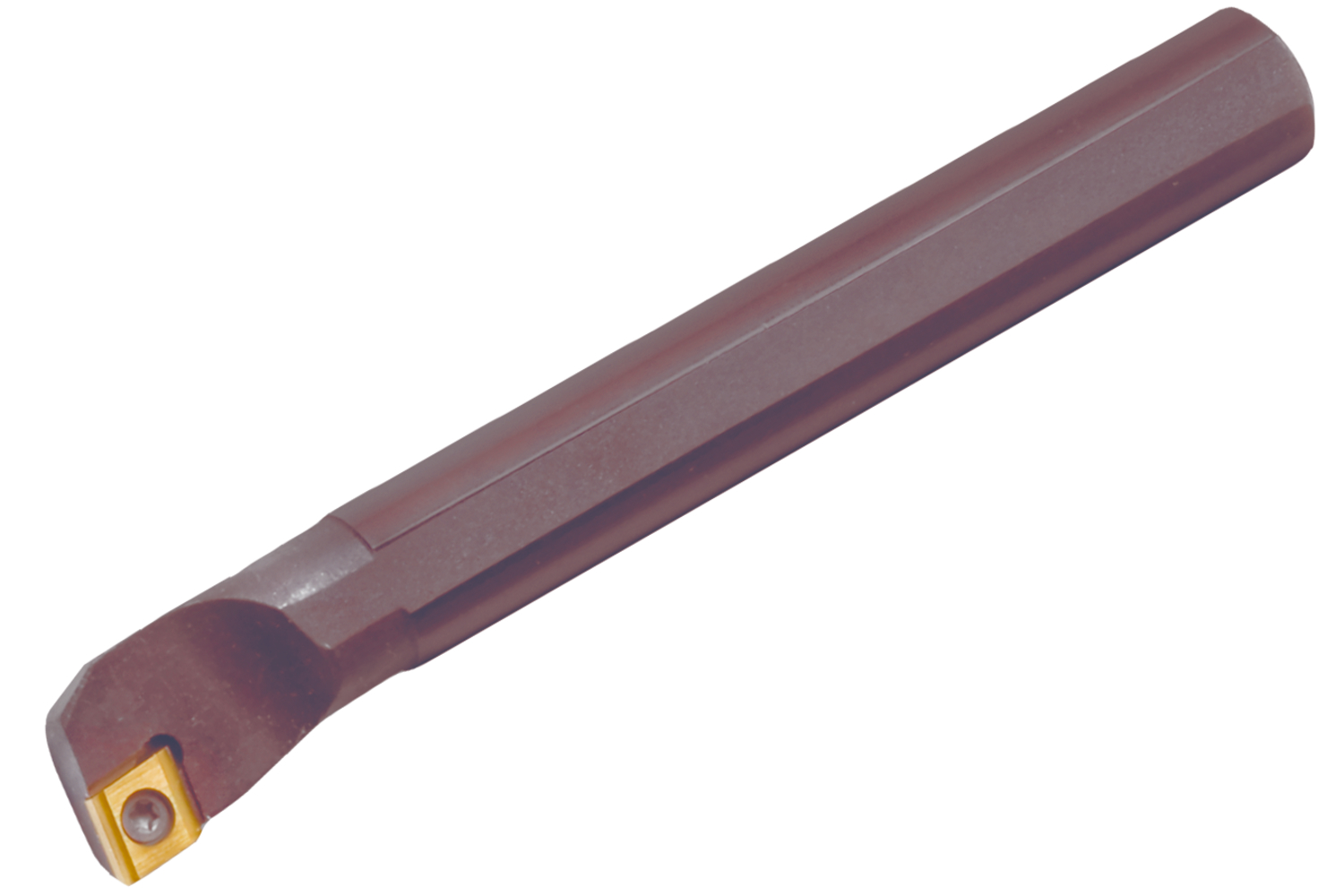

Screw clamp boring bar for holding a 75 Degree rhombic shape positive insert with an inscribed circle diameter 5.56mm, 2.38mm thick (ISO designation EP.. 0502.. ), right hand 95 Degree side and end cutting with off-set shank, steel without coolant hole, 6mm diameter 46mm protrusion length for cone boring and longitudinal boring with and without shoulder.
Product Specifications
| EDP Number | 6761347 |
| Connection Diameter (mm) | 6 mm |
| Connection Diameter (Inch) | 0.236" |
| Cutting Diameter (mm) | 8 mm |
| Cutting Diameter (Inch) | 0.315" |
| Overall Length (mm) | 70 mm |
| Overall Length (Inch) | 2.756" |
| Protruding Length (mm) | 46 mm |
| Country of origin | Czech Republic |
