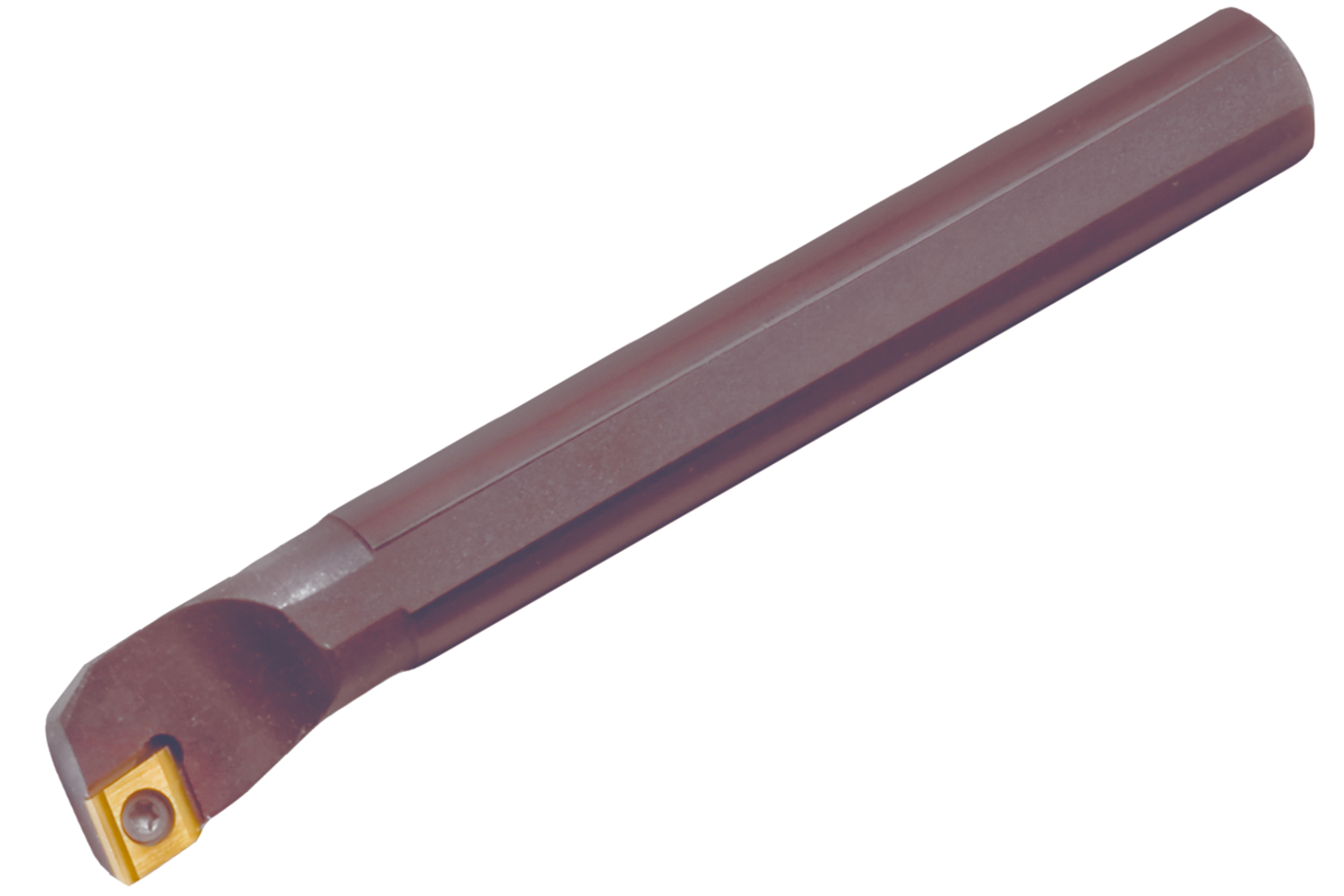

Screw clamp boring bar for holding a 80 Degree rhombic shape positive insert with an inscribed circle diameter 6.35mm, 2.38mm thick (ISO designation CC.. 0602.. ), right hand 95 Degree side and end cutting with off-set shank, steel without coolant hole, 10mm diameter 54mm protrusion length for cone boring and longitudinal boring with and without shoulder.
Product Specifications
| EDP Number | 6760720 |
| Connection Diameter (mm) | 10 mm |
| Connection Diameter (Inch) | 0.394" |
| Cutting Diameter (mm) | 13 mm |
| Cutting Diameter (Inch) | 0.512" |
| Overall Length (mm) | 90 mm |
| Overall Length (Inch) | 3.543" |
| Protruding Length (mm) | 54 mm |
| Country of origin | Czech Republic |
