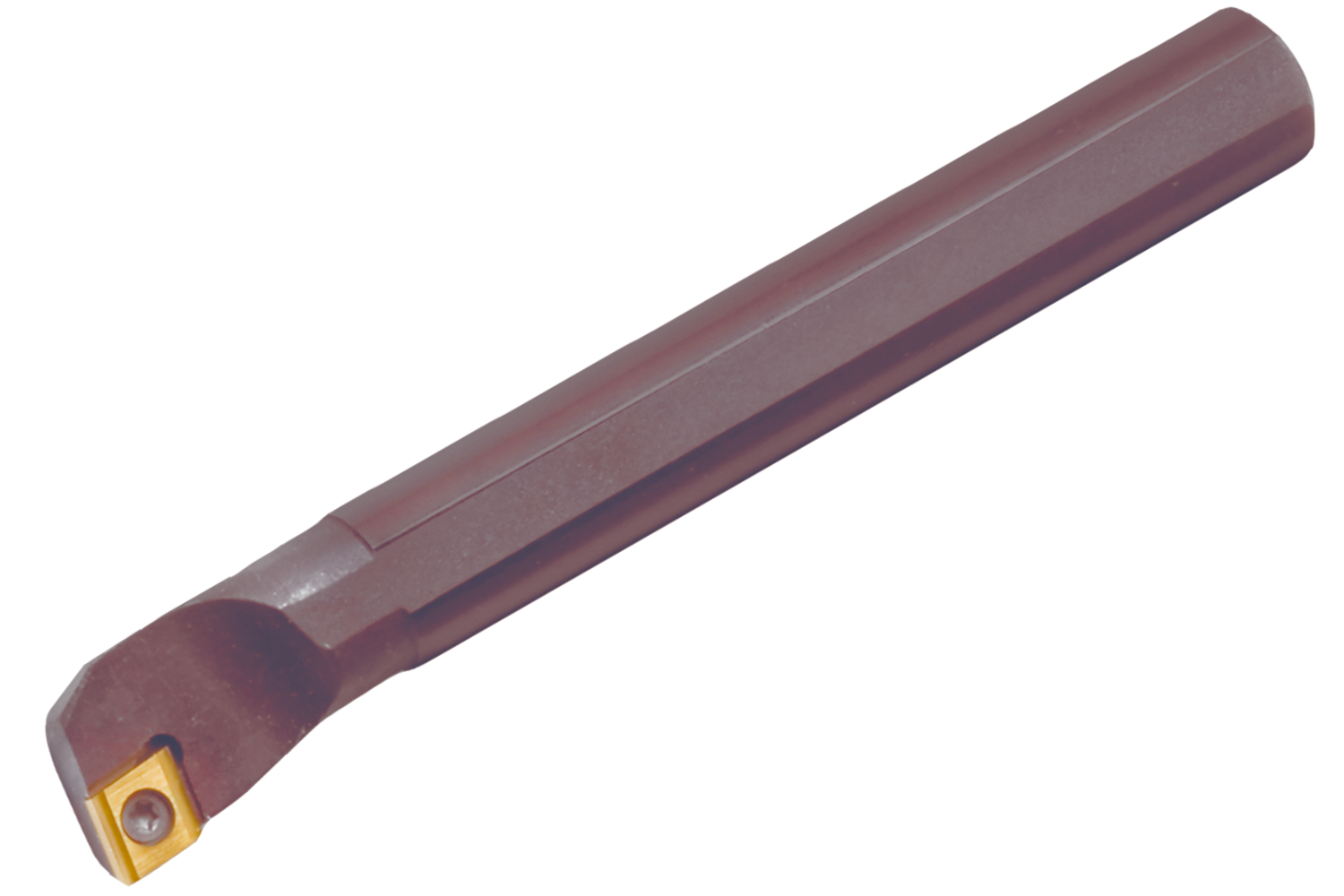

Screw clamp boring bar for holding a 80° rhombic shape positive insert with an inscribed circle diameter 6.35mm, 2.38mm thick (ISO designation CC.. 0602.. ), right hand 95° side and end cutting with off-set shank, steel without coolant hole, 8mm diameter 50mm protrusion length for cone boring and longitudinal boring with and without shoulder.
Product Specifications
| EDP Number | 6760719 |
| Connection Diameter (mm) | 8 mm |
| Connection Diameter (Inch) | 0.315" |
| Cutting Diameter (mm) | 10 mm |
| Cutting Diameter (Inch) | 0.394" |
| Overall Length (mm) | 80 mm |
| Overall Length (Inch) | 3.15" |
| Protruding Length (mm) | 50 mm |
