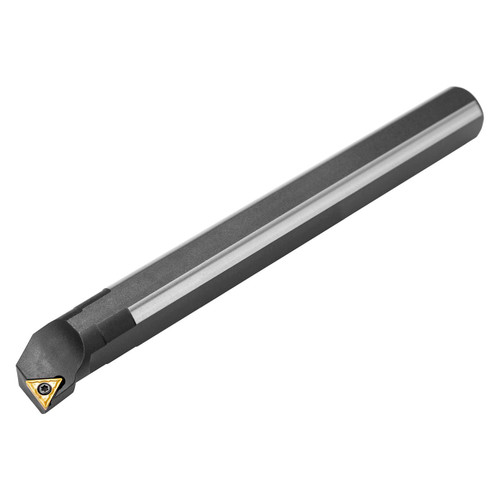

Screw clamp boring bar for holding a triangular positive insert with an inscribed circle diameter of 9.525 mm, 3.97 mm thick (ISO designation TC.. 16T3.. ), right hand 90° end cutting with off-set shank, steel without coolant hole, 32 mm diameter x 350 mm long for taper boring and longitudinal boring with and without shoulder.
Product Specifications
| EDP Number | 6756657 |
| Functional Width (mm) | |
| Inclination Angle | -10 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 32 mm |
| Connection Diameter (Inch) | 1.26" |
| Shank Height (mm) | 30 mm |
| Shank Width (mm) | 30 mm |
| Minimum Bore Diameter (mm) | |
| Functional Length (mm) | 350 mm |
| Direction of Tool | Right |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Width (Inch):
1-3/16"
Shank Height (Inch):
1-3/16"
