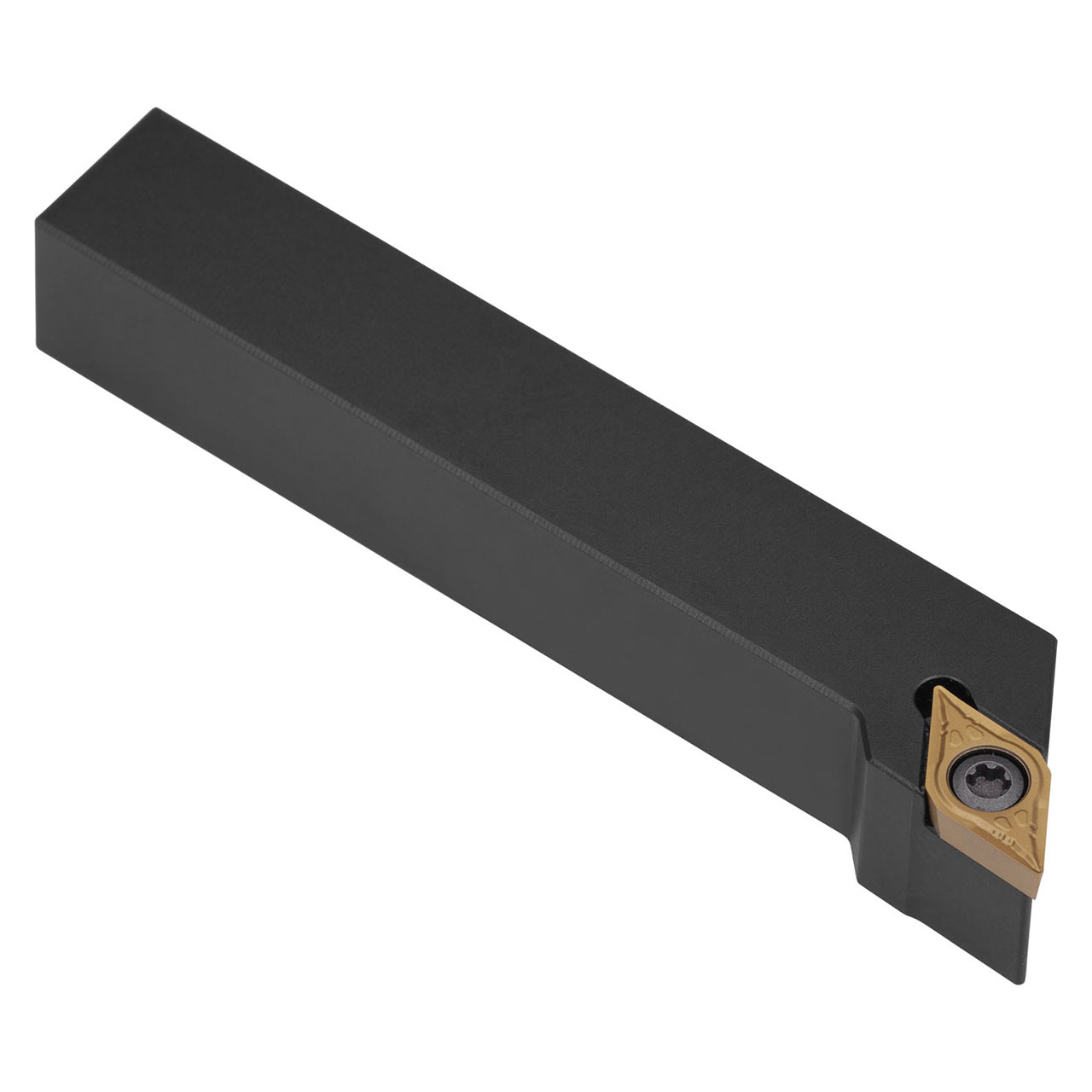

Screw clamp turning tool for holding a 55° rhombus positive insert with an inscribed circle diameter of 3/8'', 5/32'' thick (ANSI designation DC.. 32.5. ), left hand 93° side cutting with off-set shank, 1'' tool height x 1'' width x 6'' long for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder.
Product Specifications
| EDP Number | 6788664 |
| Functional Height (Inch) | 1" |
| Functional Width (Inch) | 1.25" |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (Inch) | 1" |
| Shank Width (Inch) | |
| Functional Length (Inch) | 6" |
| Head Length (Inch) | 1.1" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Width (Inch):
1"
Shank Width (Decimal Inch):
1.0000"
Shank Width (mm):
25.4mm
Shank Height (Inch):
1"
Shank Height (Decimal Inch):
1.0000"
Shank Height (mm):
25.4mm
interval quantity:
1
