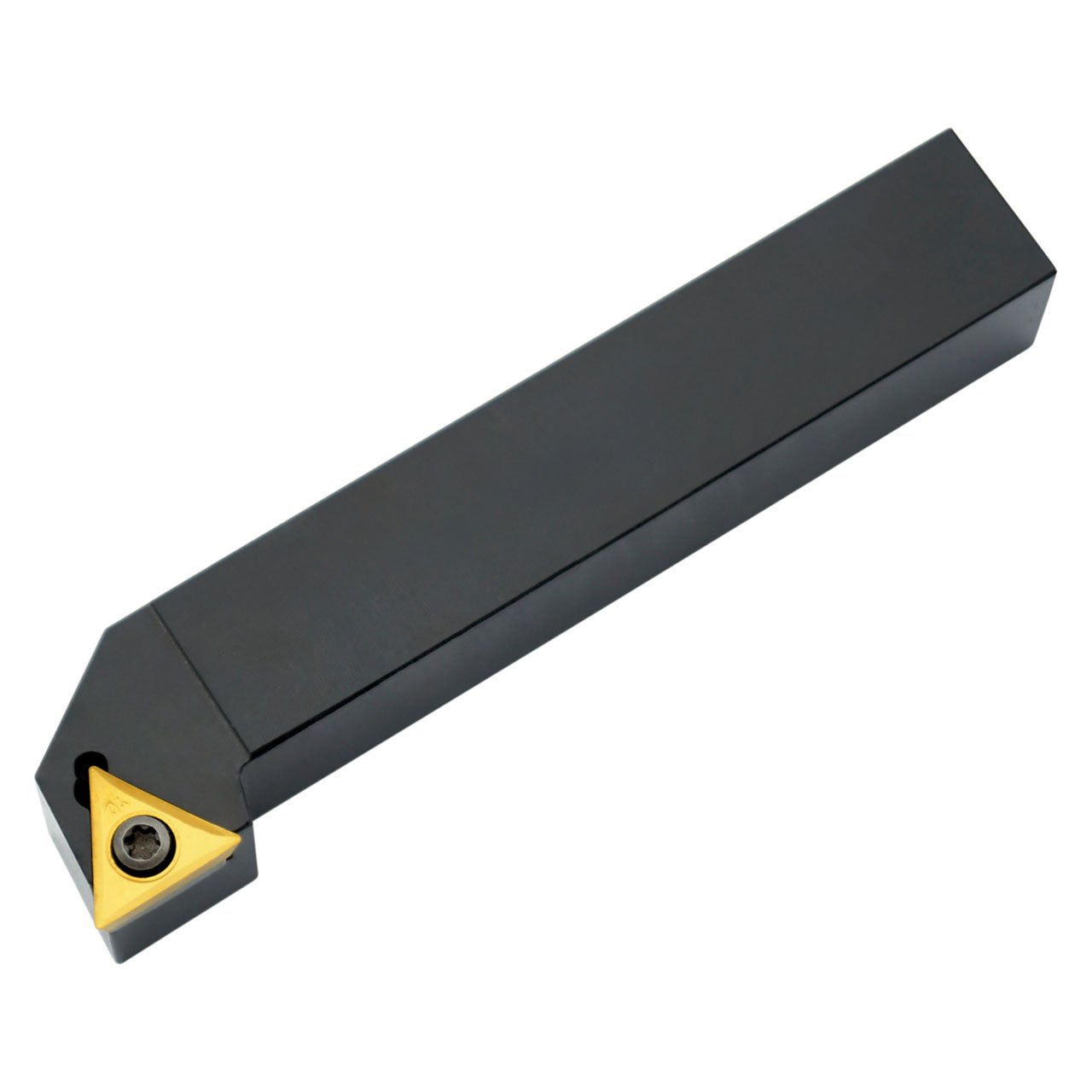

Screw clamp turning tool for holding a triangular positive insert with an inscribed circle diameter of 3/8'', 5/32'' thick (ANSI designation TC.. 32.5. ), right hand 90 Degree side cutting with off-set shank, 1'' tool height x 1'' width x 6'' long for taper turning and longitudinal turning without shoulder.
Product Specifications
| EDP Number | 6788681 |
| Functional Height (Inch) | 1" |
| Functional Width (Inch) | 1.25" |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Width (Inch) | |
| Functional Length (Inch) | 6" |
| Head Length (Inch) | 0.815" |
| Country of origin | Czech Republic |
