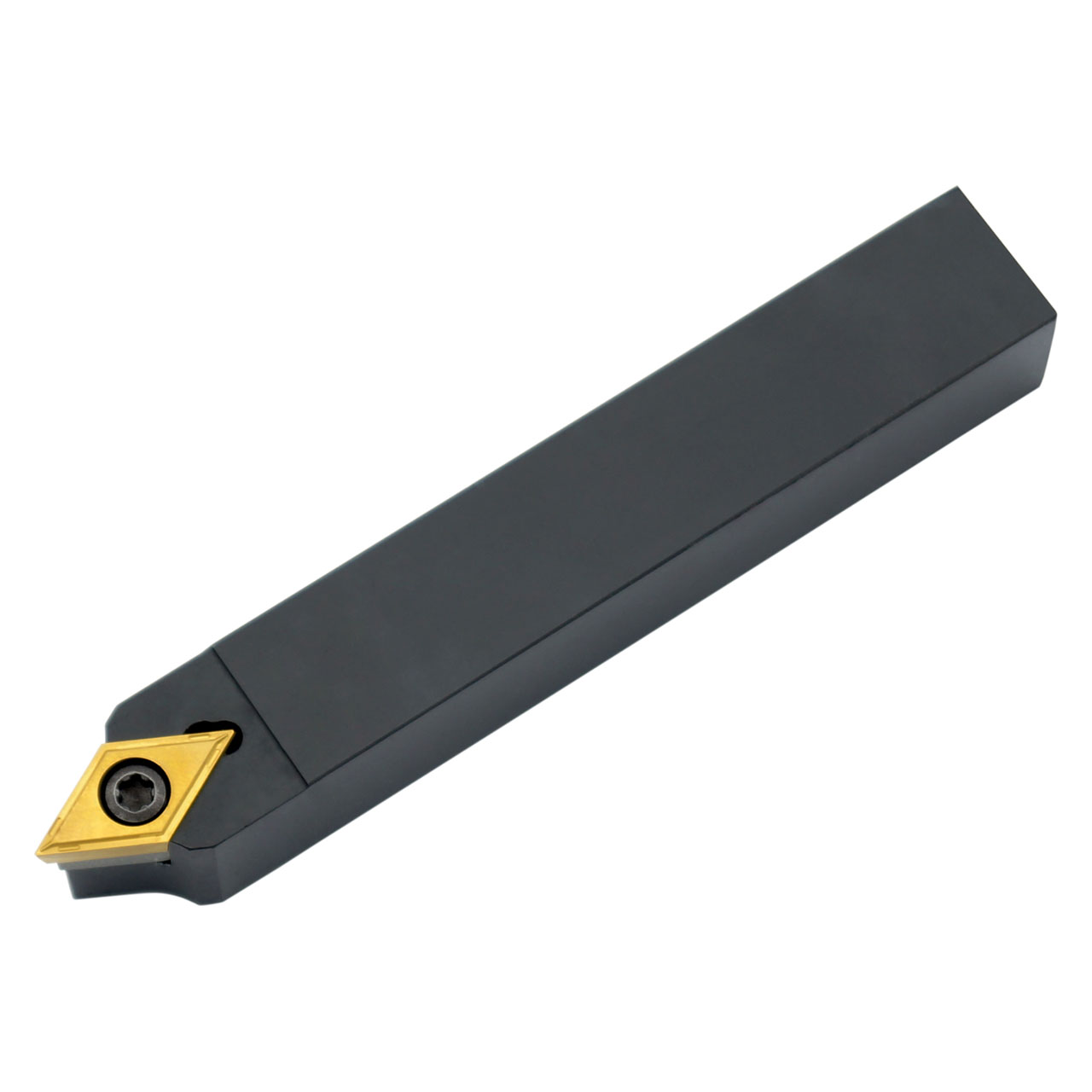

Screw clamp turning tool for holding a 55 Degree rhombus positive insert with an inscribed circle diameter of 3/8'', 5/32'' thick (ANSI designation DC.. 32.5. ), neutral hand 62.5 Degree, left and right side cutting, 1'' tool height x 1'' width x 5'' long for single and multi-directional copy turning.
Product Specifications
| EDP Number | 6788673 |
| Functional Height (Inch) | 1" |
| Functional Width (Inch) | 0.529" |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Width (Inch) | |
| Functional Length (Inch) | 5" |
| Head Length (Inch) | 0.89" |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Width (Inch):
1"
Shank Width (Decimal Inch):
1.0000"
Shank Width (mm):
25.4mm
interval quantity:
1
