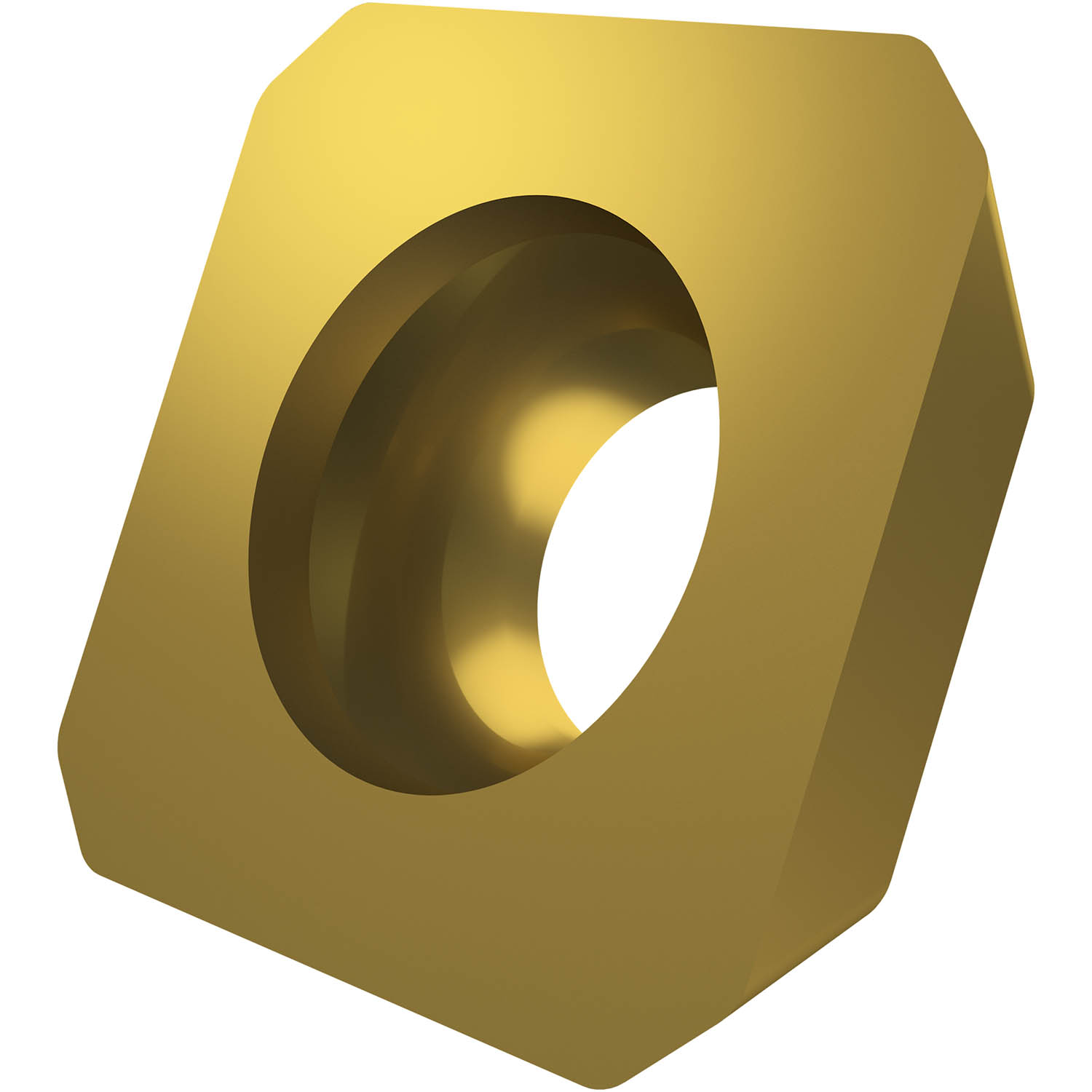

Pramet 6800864 | 12.70mm Diameter x 4.76mm Thickness M8340 Grade Milling Insert

$19.00 $14.82
(You save $4.18)
Brand:
Pramet
Finish/Coating:
PVD
Length (Decimal Inch):
0.5000"
Length (mm):
12.70mm
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.76mm
interval quantity:
10
SKU:
23150562
UPC:
Weight:
0.01 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
Single-sided milling insert SEEW 1204 with a plane rake surface, square for a maximum depth of cut of 6.5 mm, with an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges, M8340 PVD coated fine grained WC-Co carbide.

Product Specifications
EDP Number6800864
Maximum Depth of Cut (mm)6.5 mm
Max Depth of Cut (Inch)0.256"
Coating Property1
Fixing Hole Diameter (mm)5.5 mm
Fixing Hole Diameter (Inch)0.217"
Cutting Edge Length (mm)12.7 mm
Cutting Edge Length (Inch)0.5"
Inscribed Circle Diameter (mm)12.7 mm
Inscribed Circle Diameter (Inch)0.5"
M-Dimension (mm)1.6 mm
M-Dimension (Inch)0.063"
Insert Thickness (mm)4.76 mm
Insert Thickness (Inch)0.187"
Coating ProcessPVD
CoatingM8340
Surface ColorGold
Min Depth of Cut (mm)0.5 mm
Min Depth of Cut (Inch)0.02"
Country of originCzech Republic
