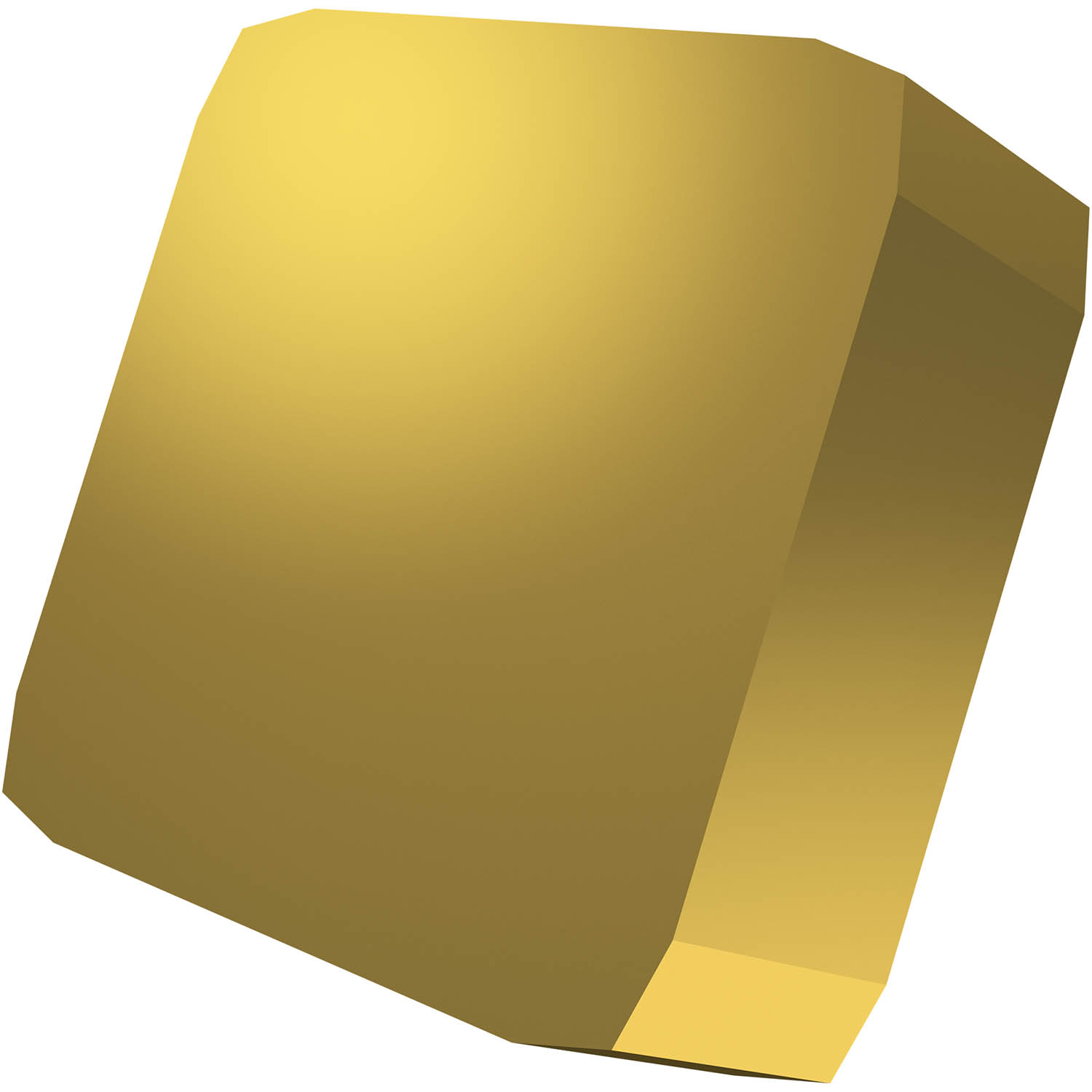

Double-sided milling insert SNHN 1204 with a plane rake surface, square for a maximum depth of cut of 9.0 mm, with an indexing accuracy according to ISO-tolerance class-H with rounded cutting edges, M8340 PVD coated fine grained WC-Co carbide.
Product Specifications
| EDP Number | 6800869 |
| Maximum Depth of Cut (mm) | 9 mm |
| Max Depth of Cut (Inch) | 0.354" |
| Coating Property | 1 |
| Cutting Edge Length (mm) | 12.7 mm |
| Cutting Edge Length (Inch) | 0.5" |
| Inscribed Circle Diameter (mm) | 12.7 mm |
| Inscribed Circle Diameter (Inch) | 0.5" |
| M-Dimension (mm) | 0.95 mm |
| M-Dimension (Inch) | 0.037" |
| Insert Thickness (mm) | 4.76 mm |
| Insert Thickness (Inch) | 0.187" |
| Wiper Edge Length (mm) | 1.4 mm |
| Wiper Edge Length (Inch) | 0.055" |
| Coating Process | PVD |
| Coating | M8340 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 0.5 mm |
| Min Depth of Cut (Inch) | 0.02" |
