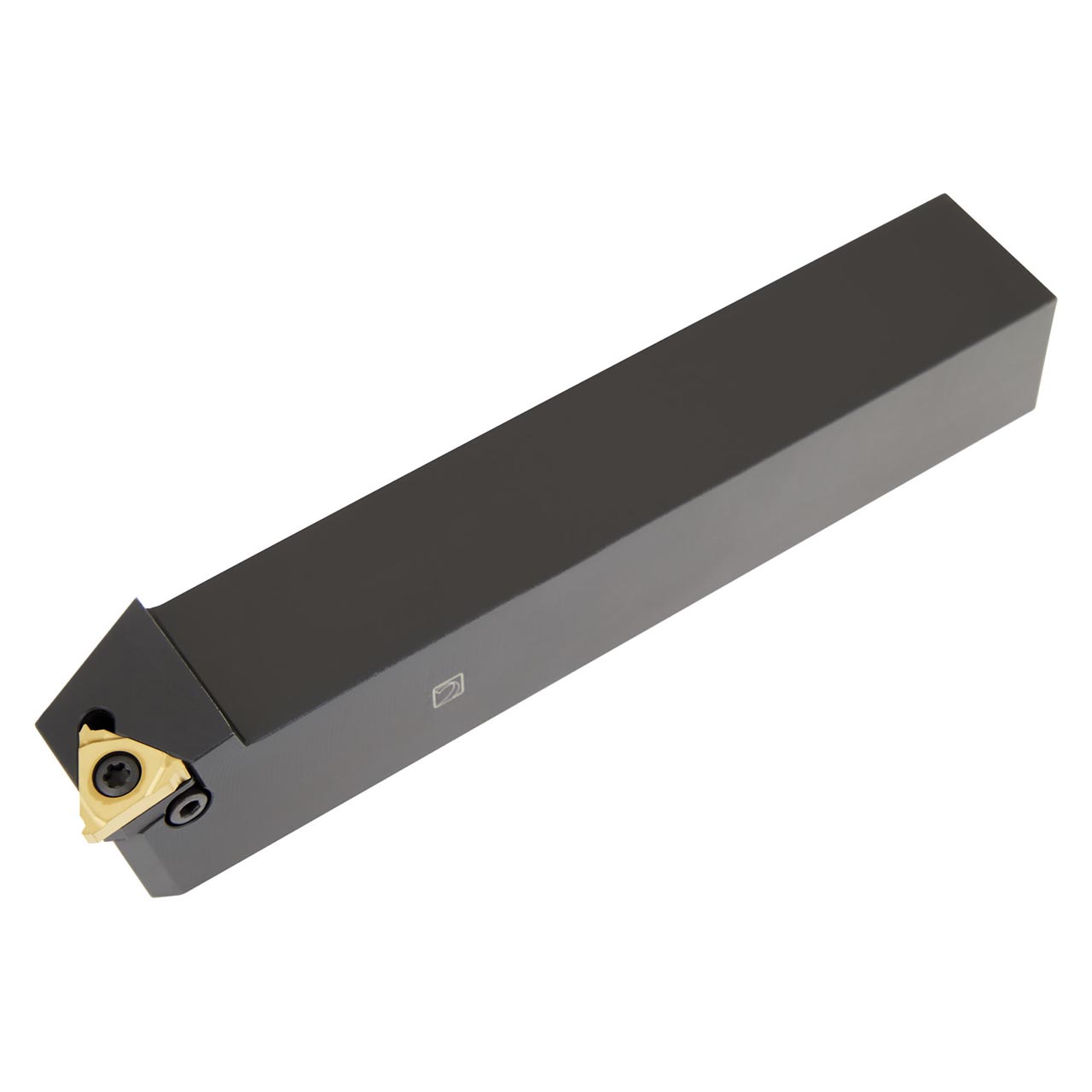

Screw clamp thread turning tool with 1.5° helix angle for holding a triangle shaped insert with an inscribed circle diameter of 9.525 mm (designation TN 16ER.. ), right hand standard design with straight shank, 25 mm tool height, 25 mm width and 150 mm overall length for external threading, circlip grooving, and o-ring grooving.
Product Specifications
| EDP Number | 6756940 |
| Functional Height (mm) | 25 mm |
| Functional Width (mm) | |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (mm) | 25 mm |
| Shank Width (mm) | 25 mm |
| Functional Length (mm) | 150 mm |
| Head Length (mm) | 24 mm |
| Direction of Tool | Right |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
Shank Width (Inch):
3/8";Shank Width (Decimal Inch)=0.3700""
Shank Width (mm):
9.5mm
Shank Height (Inch):
23/64";Shank Height (Decimal Inch)=0.3500""
Shank Height (mm):
9mm
Ships:
From Partner Facility
