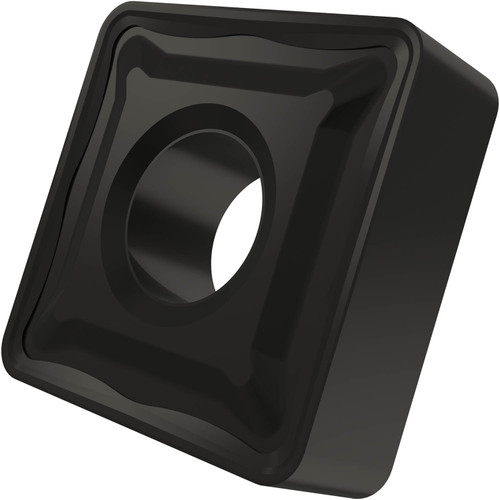

Double-sided negative turning insert, square with inscribed circle diameter of 12.7 mm, 4.76 mm thick, 0.8 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker R with rounded cutting edges, in grade T9335, a MT-CVD coated functionally graded WC-Co carbide within ISO range P20-P45, for medium to heavy machining of steels.
Product Specifications
| EDP Number | 6754932 |
| Max Depth of Cut (mm) | 6 mm |
| Max Depth of cut (Inch) | 0.236" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 5.16 mm |
| Fixing Hole Diameter (Inch) | 0.203" |
| Cutting Edge Length (mm) | 12.7 mm |
| Cutting Edge Length (Inch) | 0.5" |
| Inscribed Circle Diameter (mm) | 12.7 mm |
| Inscribed Circle Diameter (Inch) | 0.5" |
| Insert Thickness (mm) | 4.76 mm |
| Insert Thickness (Inch) | 0.187" |
| Corner Radius (mm) | 0.8 mm |
| Corner Radius (Inch) | 0.031" |
| Coating Process | MT-CVD |
| Coating | T9335 |
| Surface Color | Black |
| Min Depth of Cut (mm) | 2 mm |
| Min Depth of Cut (Inch) | 0.079" |
| Chipbreaker Manufacturer's Designation | R |
