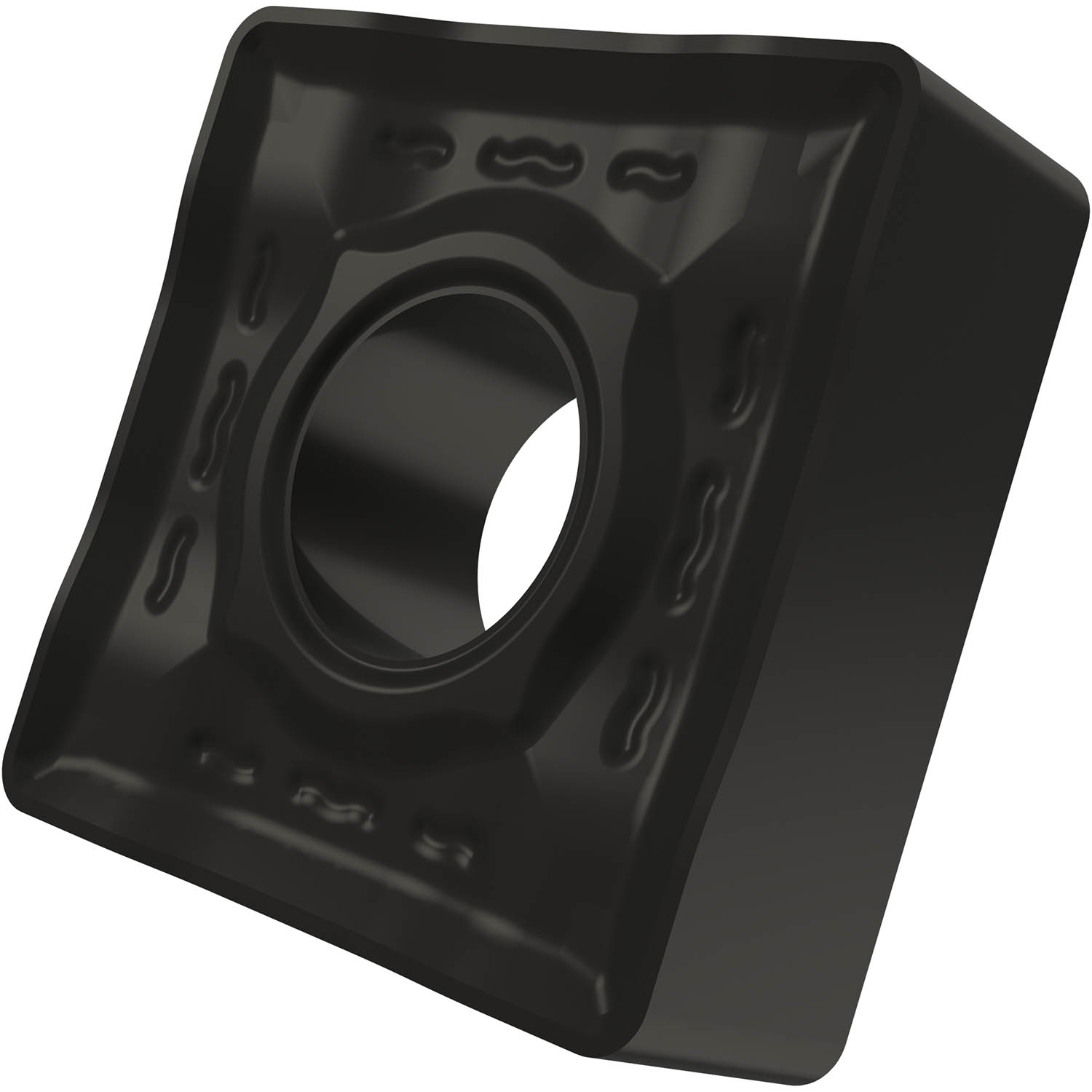

Single-sided negative turning insert, square with inscribed circle diameter of 25.4 mm, 9.52 mm thick, 2.4 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker NR2 with rounded cutting edges, in grade T7335, a MT-CVD coated functionally graded WC-Co carbide within ISO range M20-M40, for medium to extra heavy machining of stainless-steels.
Product Specifications
| EDP Number | 6754814 |
| Max Depth of Cut (mm) | 16 mm |
| Max Depth of cut (Inch) | 0.63" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 9.12 mm |
| Fixing Hole Diameter (Inch) | 0.359" |
| Cutting Edge Length (mm) | 25.4 mm |
| Cutting Edge Length (Inch) | 1" |
| Inscribed Circle Diameter (mm) | 25.4 mm |
| Inscribed Circle Diameter (Inch) | 1" |
| Insert Thickness (mm) | 9.525 mm |
| Insert Thickness (Inch) | 0.375" |
| Corner Radius (mm) | 2.4 mm |
| Corner Radius (Inch) | 0.094" |
| Coating Process | MT-CVD |
| Coating | T7335 |
| Surface Color | Black |
| Min Depth of Cut (mm) | 3 mm |
| Min Depth of Cut (Inch) | 0.118" |
| Chipbreaker Manufacturer's Designation | NR2 |
