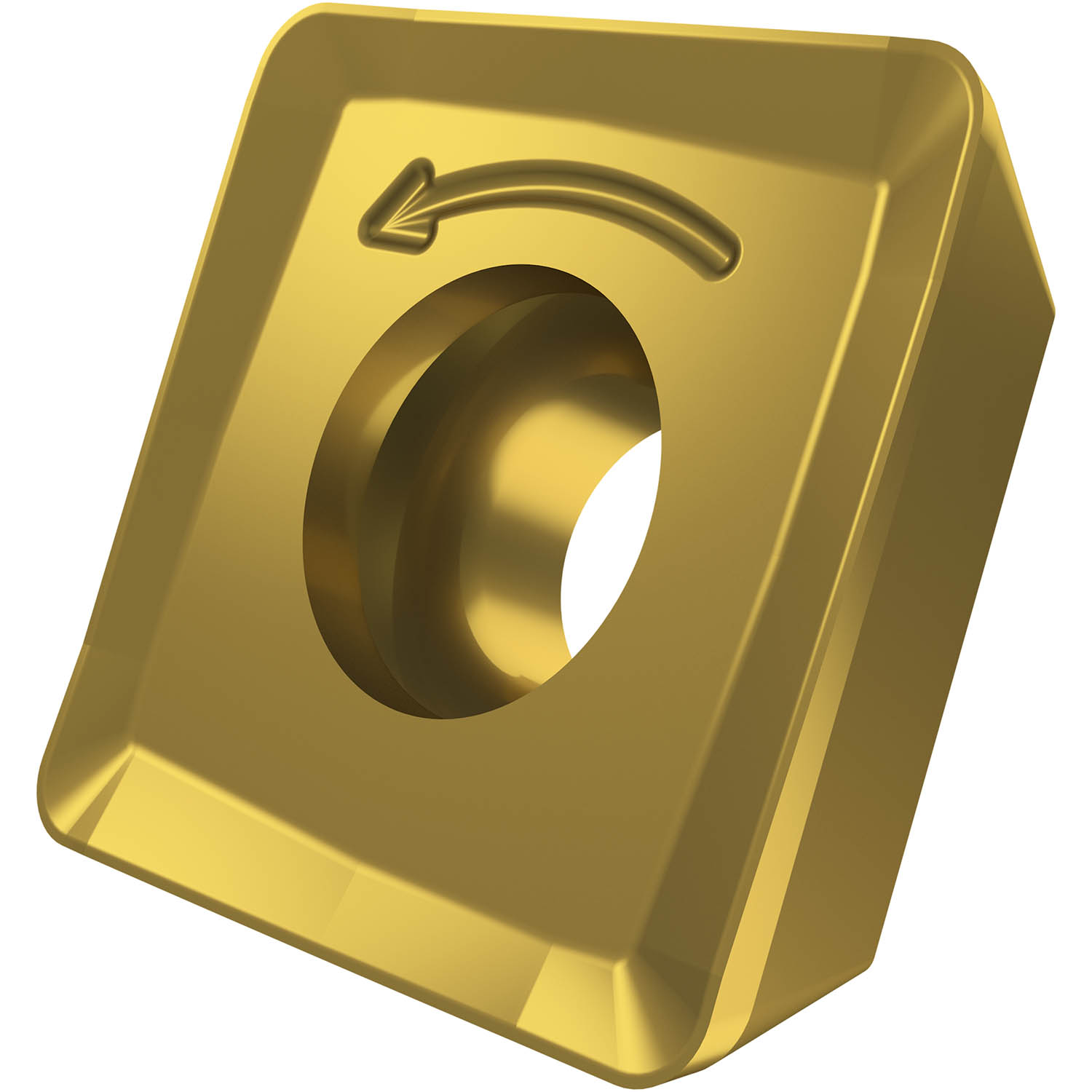

Single-sided milling insert SOMT 09T3 with chip-breakers, square for a maximum depth of cut of 8.0 mm, with 0.8 mm corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P50 and M20-M40 for machining of steel and stainless-steel with chamfer mills N-SSO09 or shoulder mills SSO09.
Product Specifications
| EDP Number | 6800889 |
| Maximum Depth of Cut (mm) | 8 mm |
| Max Depth of Cut (Inch) | 0.315" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 3.5 mm |
| Fixing Hole Diameter (Inch) | 0.138" |
| Cutting Edge Length (mm) | 9.55 mm |
| Cutting Edge Length (Inch) | 0.376" |
| Inscribed Circle Diameter (mm) | 9.55 mm |
| Inscribed Circle Diameter (Inch) | 0.376" |
| Insert Thickness (mm) | 3.97 mm |
| Insert Thickness (Inch) | 0.156" |
| Corner Radius (mm) | 0.8 mm |
| Corner Radius (Inch) | 0.031" |
| Coating Process | PVD |
| Coating | M8340 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 1 mm |
| Min Depth of Cut (Inch) | 0.039" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
interval quantity:
10
