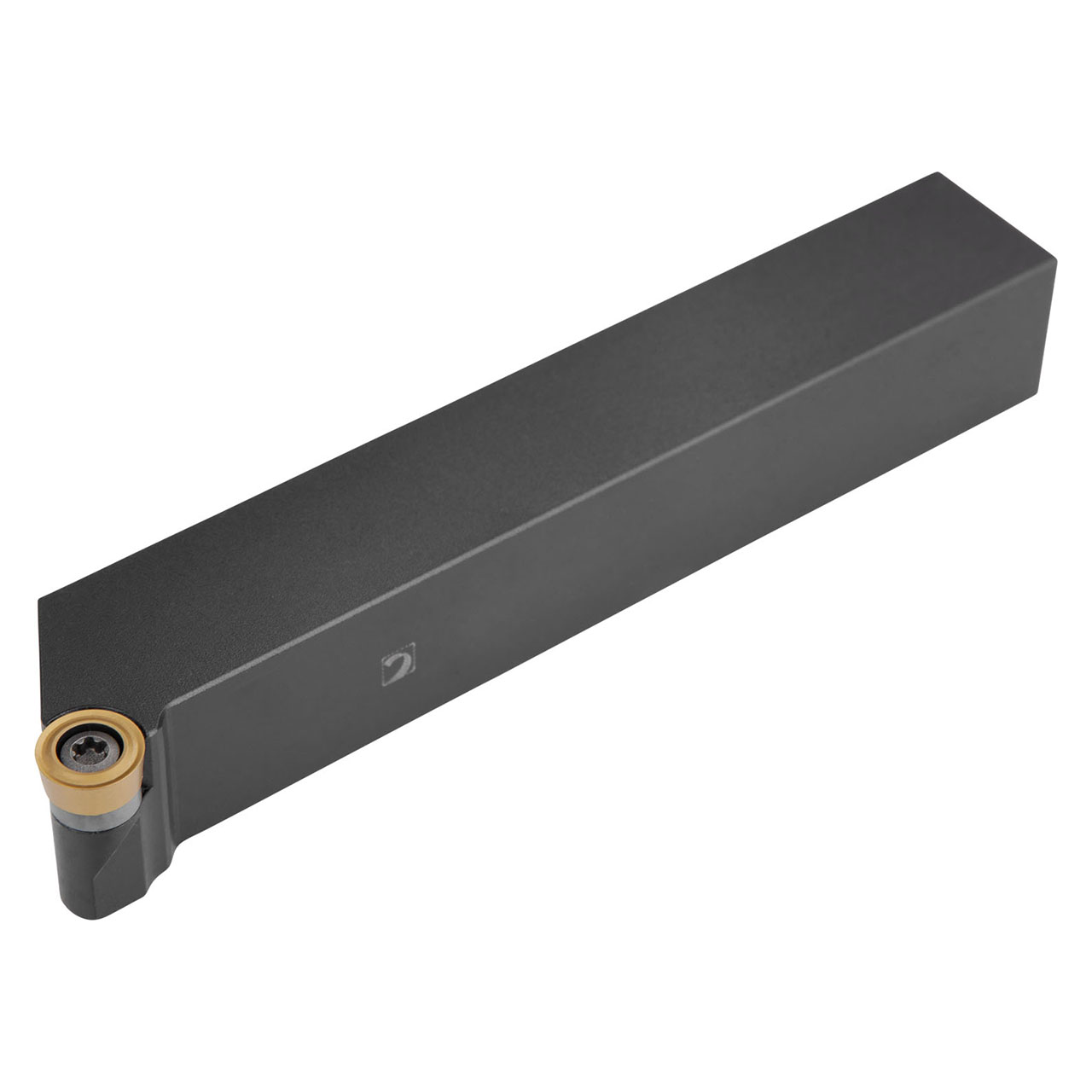

Screw clamp turning tool for holding a round positive insert with a diameter of 8 mm, 3.18 mm thick (ISO designation RC.. 0803MO ), right hand side cutting with off-set shank, 20 mm tool height x 20 mm width x 125 mm long for taper turning, multi-directional copy turning, face turning without shoulder and longitudinal turning without shoulder.
Product Specifications
| EDP Number | 6756780 |
| Functional Height (mm) | 20 mm |
| Functional Height (Inch) | 0.787" |
| Functional Width (mm) | |
| Functional Width (Inch) | 0.984" |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (mm) | 20 mm |
| Shank Width (mm) | 20 mm |
| Shank Width (Inch) | |
| Functional Length (mm) | 125 mm |
| Head Length (mm) | 20 mm |
| Head Length (Inch) | 0.787" |
| Direction of Tool | Right |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Width (Inch):
25/32"
Shank Width (Decimal Inch):
0.7870"
Shank Width (mm):
20mm
Shank Height (Inch):
25/32"
Shank Height (Decimal Inch):
0.7900"
Shank Height (mm):
20mm
