Pramet STGCR 12 3B | 1" Functional Width Indexable Turning Toolholder

$100.80
Ships:
From Partner Facility
Ships:
From Partner Facility
Brand:
Pramet
Shank Width (Inch):
3/4"
Shank Width (Decimal Inch):
0.7500"
Shank Width (mm):
19.05mm
interval quantity:
1
SKU:
23154633
Weight:
14.07 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

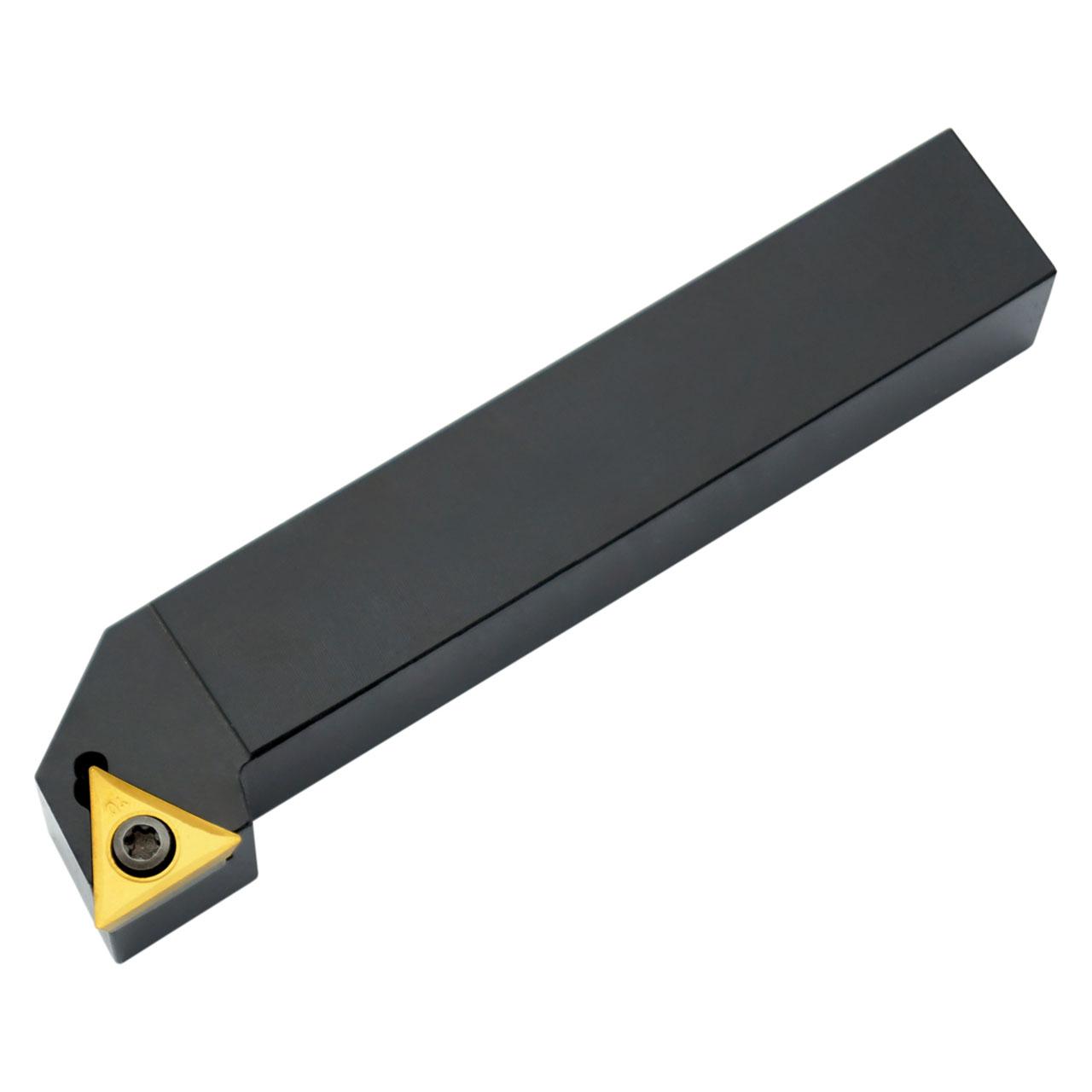

Screw clamp turning tool for holding a triangular positive insert with an inscribed circle diameter of 3/8'', 5/32'' thick (ANSI designation TC.. 32.5. ), right hand 90° side cutting with off-set shank, 3/4'' tool height x 3/4'' width x 4.1/2'' long for taper turning and longitudinal turning without shoulder.

Product Specifications
EDP Number6788680
Functional Height (Inch)0.75"
Functional Width (Inch)1"
Maximum Axial Groove Outside Diameter (mm)
Shank Width (Inch)
Functional Length (Inch)4.5"
Head Length (Inch)0.815"
