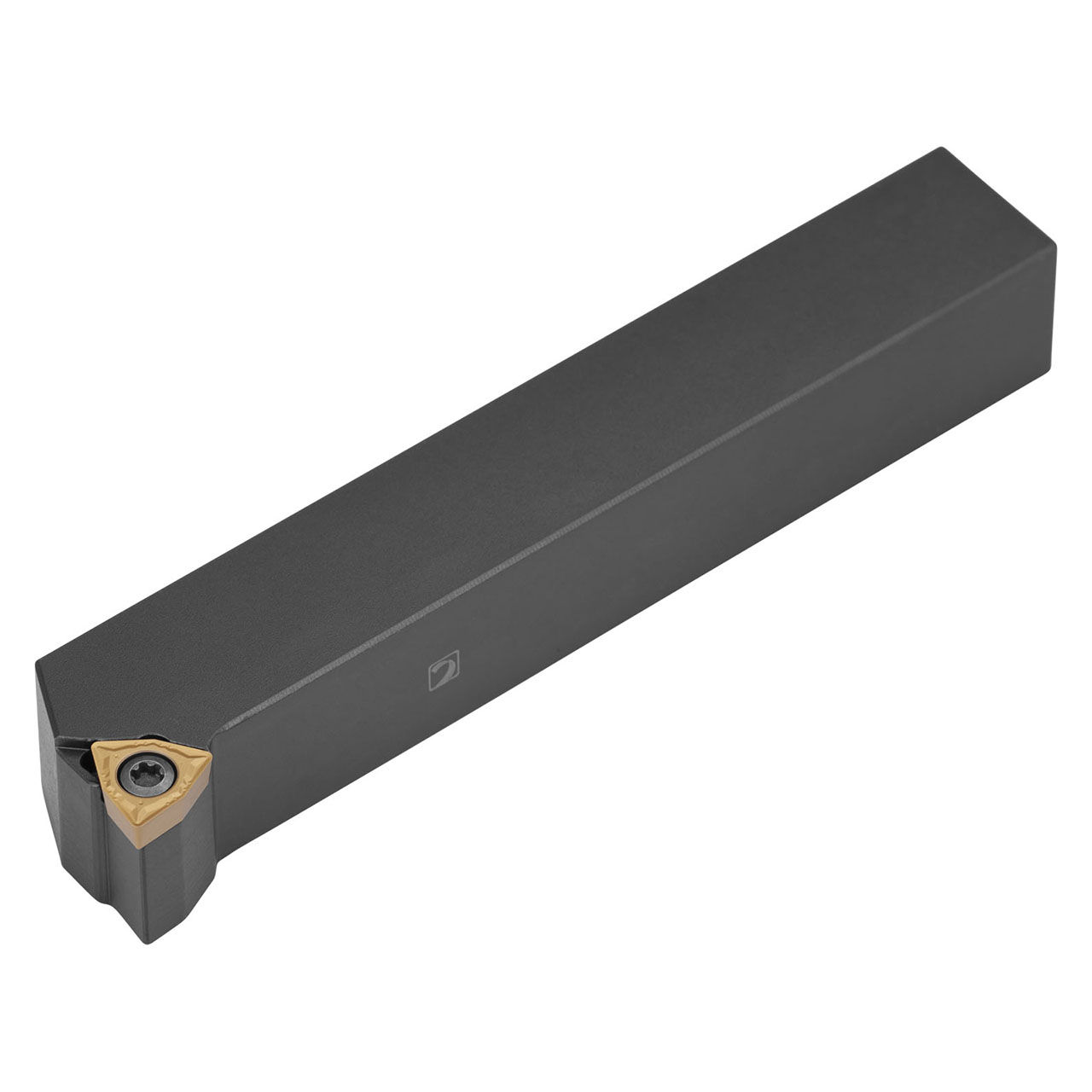

Screw clamp turning tool for holding a 80° trigon positive insert with an inscribed circle diameter of 12.7 mm, 4.76 mm thick (ISO designation WC.. 0804.. ), right hand 95° side and end cutting with off-set shank, 25 mm tool height x 25 mm width x 150 mm long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder.
Product Specifications
| EDP Number | 6756766 |
| Functional Height (mm) | 25 mm |
| Functional Width (mm) | |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (mm) | 25 mm |
| Shank Width (mm) | 25 mm |
| Functional Length (mm) | 150 mm |
| Head Length (mm) | 20 mm |
| Direction of Tool | Right |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Width (Inch):
63/64"
Shank Width (Decimal Inch):
0.9800"
Shank Width (mm):
25mm
Shank Height (Inch):
63/64"
Shank Height (Decimal Inch):
0.9800"
Shank Height (mm):
25mm
