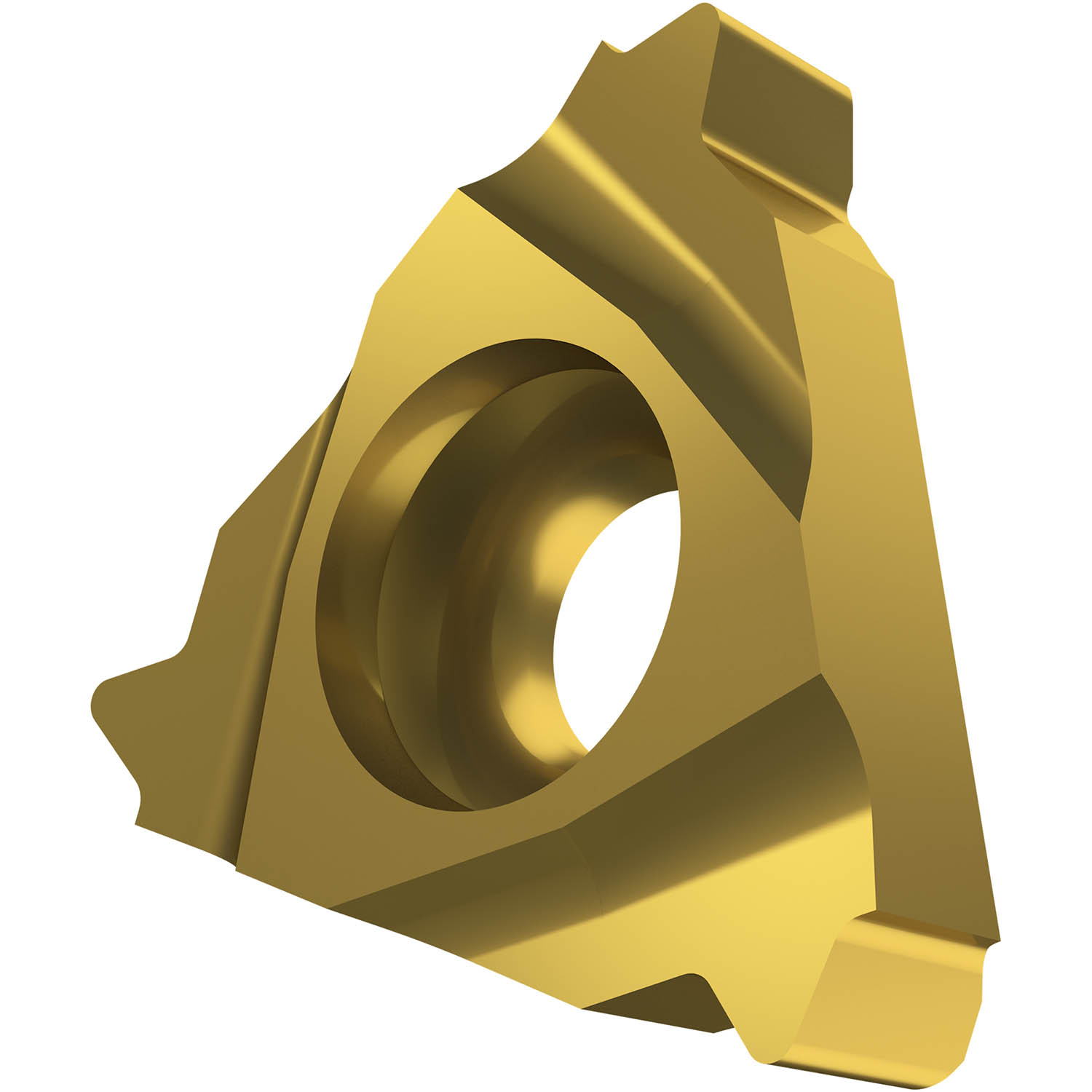

Single-sided threading insert, triangular with an inscribed circle diameter of 9.525 mm, for right hand cutting of API external threads with 10TPI, T8030 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40/M20-M35 and K20-K40 for machining of steel, stainless-steel and cast-iron.
Product Specifications
| EDP Number | 6755160 |
| Coating Property | 1 |
| Profile Distance Ex (mm) | 1.5 mm |
| Profile Distance Ey (mm) | 1.2 mm |
| Cutting Edge Length (mm) | 16.5 mm |
| Cutting Edge Length (Inch) | 0.65" |
| Inscribed Circle Diameter (mm) | 9.525 mm |
| Inscribed Circle Diameter (Inch) | 0.375" |
| Insert Thickness (mm) | 3.47 mm |
| Insert Thickness (Inch) | 0.137" |
| Threads Per inch | 10" |
| Coating Process | PVD |
| Coating | T8030 |
| Surface Color | Gold |
| Profile Distance Ex (Inch) | 0.059" |
| Profile Distance Ey (Inch) | 0.047" |
| Chipbreaker Manufacturer's Designation | No chipbreaker |
| Country of origin | Czech Republic |
