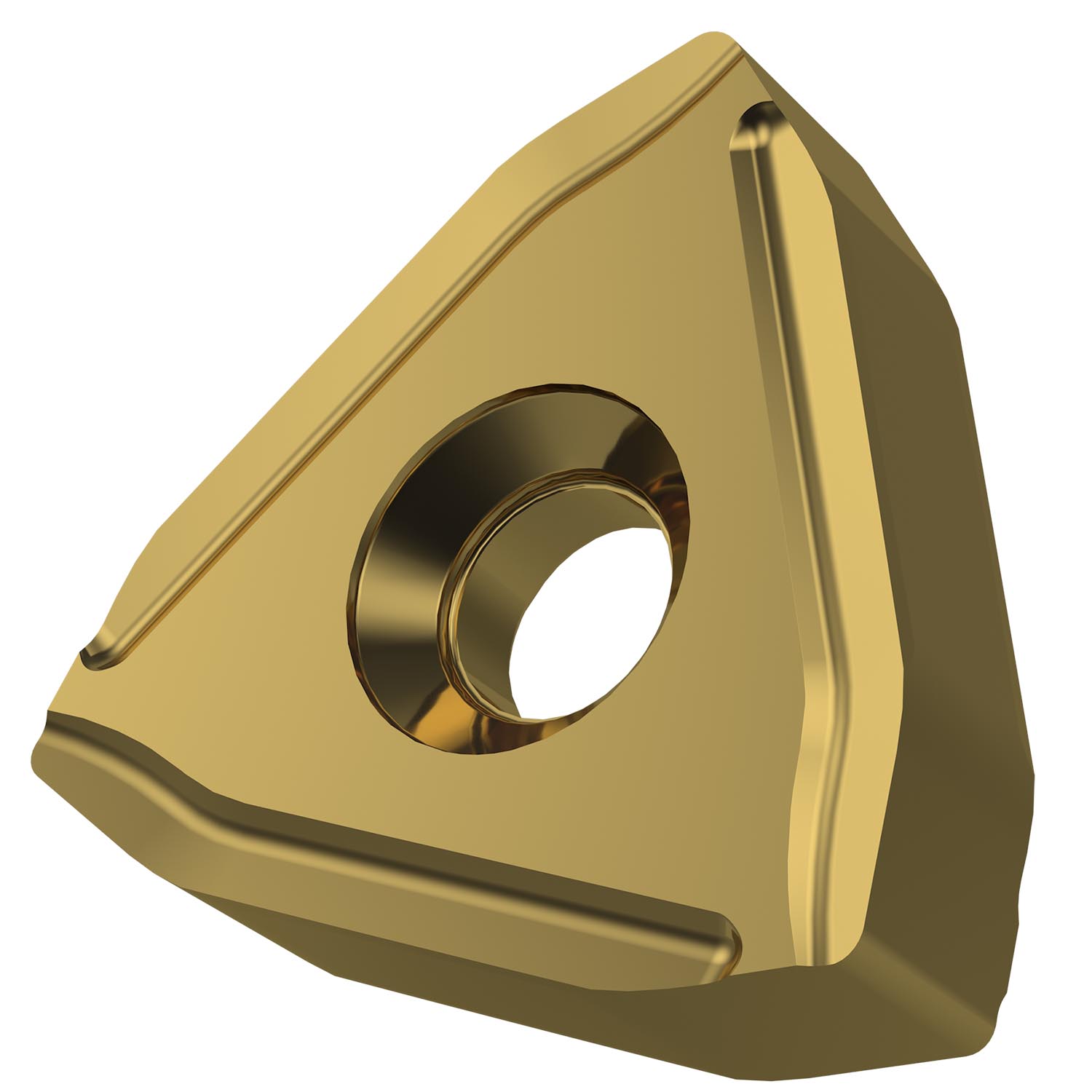

Double-sided negative barpeeling insert, triangular with inscribed circle diameter of 28.6 mm, 10 mm thick for 2.5 mm depth of cut, indexing accuracy according to ISO-tolerance class-G, chip-breaker PF with S01 cutting edge preperation, in grade 6630, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15-P35 and M10-M30, for high strength steels and stainless-steels.
Product Specifications
| EDP Number | 6752812 |
| Min Cutting Depth (mm) | 0.6 mm |
| Max Depth of Cut (mm) | 2.5 mm |
| Max Depth of cut (Inch) | 0.098" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 7 mm |
| Fixing Hole Diameter (Inch) | 0.276" |
| Cutting Edge Length (mm) | 49.5 mm |
| Cutting Edge Length (Inch) | 1.949" |
| Inscribed Circle Diameter (mm) | 28.6 mm |
| Inscribed Circle Diameter (Inch) | 1.126" |
| Insert Thickness (mm) | 10 mm |
| Insert Thickness (Inch) | 0.394" |
| Major Cutting Edge Angle | 20 |
| Wiper Edge Length (mm) | 18 mm |
| Wiper edge Length (Inch) | 0.709" |
| Coating Process | MT-CVD |
| Coating | 6630 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 0.5 mm |
| Min Depth of Cut (Inch) | 0.02" |
| Chipbreaker Manufacturer's Designation | PF-S01 |
| Country of origin | Czech Republic |
