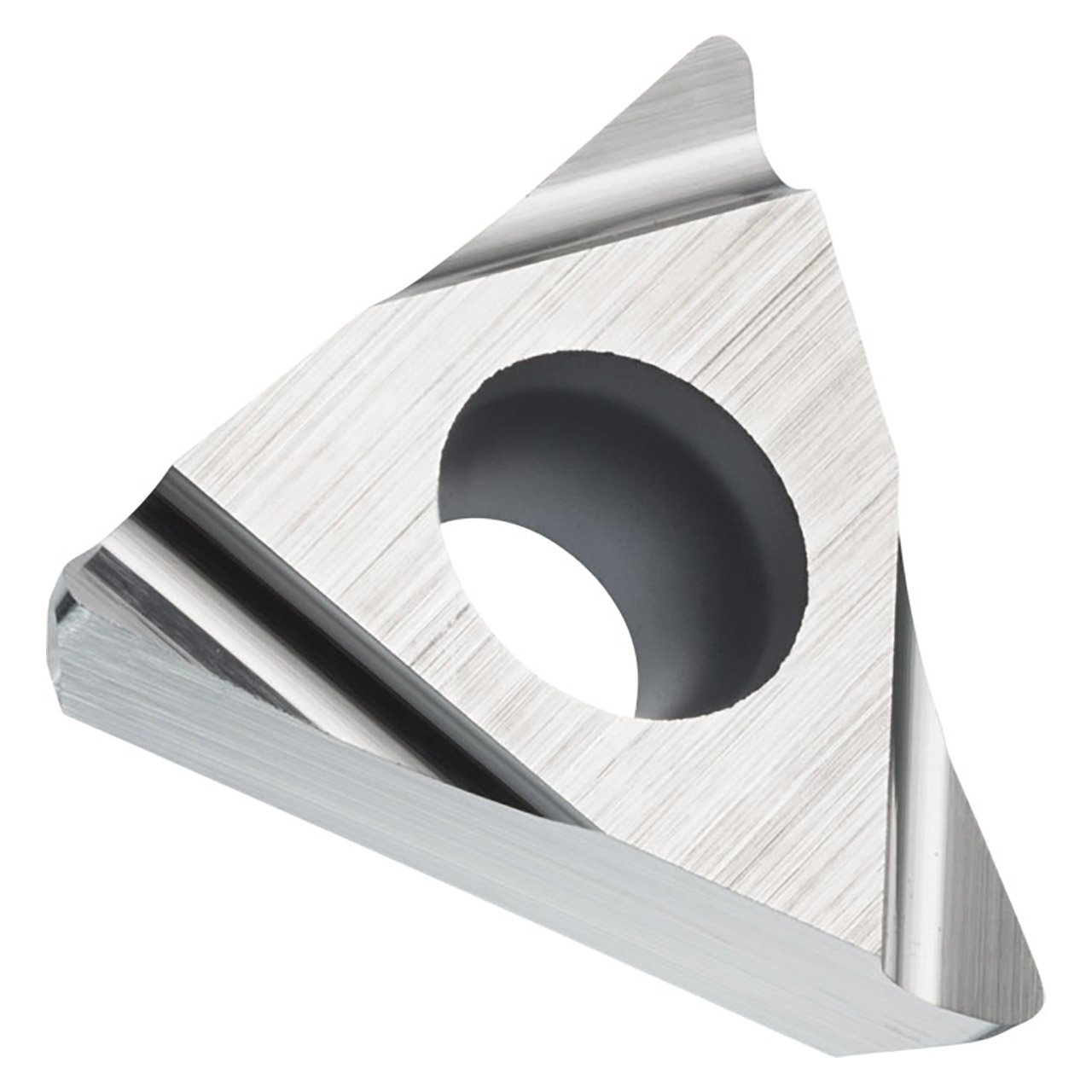

Special design positive turning insert, triangular with 11° clearance, inscribed circle diameter of 6.35 mm, 2.38 mm thick, 0.4 mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker JQ with sharp cutting edges, in grade TT010, an uncoated cermet within ISO range P01-P10, for fine machining of steels with a right handed turning tool.
Product Specifications
| EDP Number | 7080637 |
| Max Depth of Cut (mm) | 1.2 mm |
| Max Depth of cut (Inch) | 0.047" |
| Maximum Axial Groove Outside Diameter (mm) | |
| Fixing Hole Diameter (mm) | 2.8 mm |
| Fixing Hole Diameter (Inch) | 0.11" |
| Cutting Edge Length (mm) | 11 mm |
| Cutting Edge Length (Inch) | 0.433" |
| Inscribed Circle Diameter (mm) | 6.35 mm |
| Inscribed Circle Diameter (Inch) | 0.25" |
| Insert Thickness (mm) | 2.38 mm |
| Insert Thickness (Inch) | 0.094" |
| Corner Radius (mm) | 0.4 mm |
| Corner Radius (Inch) | 0.016" |
| Coating | TT010 |
| Surface Color | Grey |
| Min Depth of Cut (mm) | 0.1 mm |
| Min Depth of Cut (Inch) | 0.004" |
| Chipbreaker Manufacturer's Designation | JQ |
