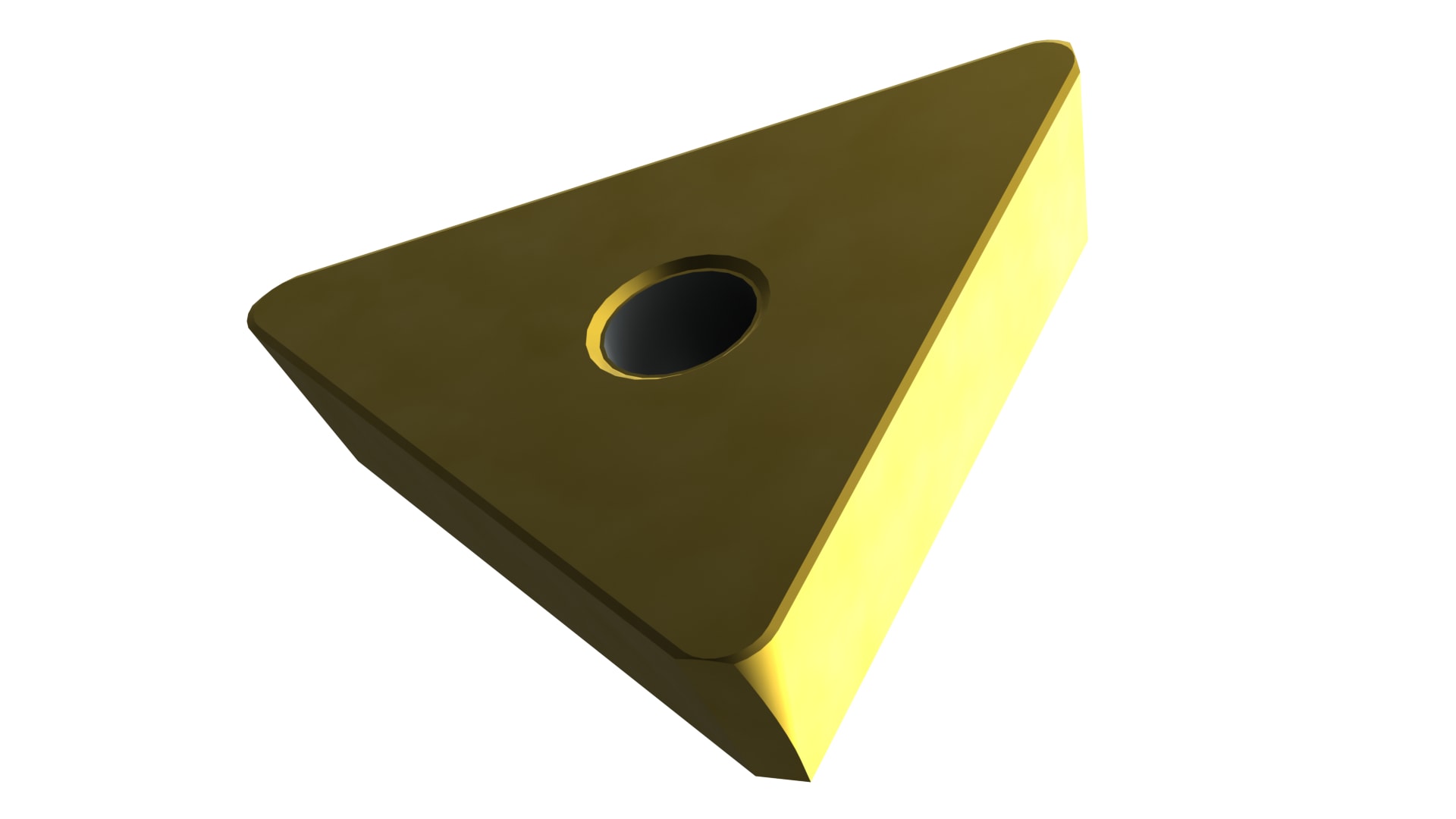

Single-sided milling insert TPKN 1603 with a plane rake surface, triangular for a maximum depth of cut of 12.0 mm, with an indexing accuracy according to ISO-tolerance class-K with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide.
Product Specifications
| EDP Number | 6803607 |
| Maximum Depth of Cut (mm) | 12 mm |
| Max Depth of Cut (Inch) | 0.472" |
| Coating Property | 1 |
| Cutting Edge Length (mm) | 16.5 mm |
| Cutting Edge Length (Inch) | 0.65" |
| Inscribed Circle Diameter (mm) | 9.53 mm |
| Inscribed Circle Diameter (Inch) | 0.375" |
| M-Dimension (mm) | 2.45 mm |
| M-Dimension (Inch) | 0.096" |
| Insert Thickness (mm) | 3.18 mm |
| Insert Thickness (Inch) | 0.125" |
| Wiper Edge Length (mm) | 1.3 mm |
| Wiper Edge Length (Inch) | 0.051" |
| Corner Chamfer Length (mm) | 1.2 mm |
| Coating Process | PVD |
| Coating | M8340 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 1 mm |
| Min Depth of Cut (Inch) | 0.039" |
