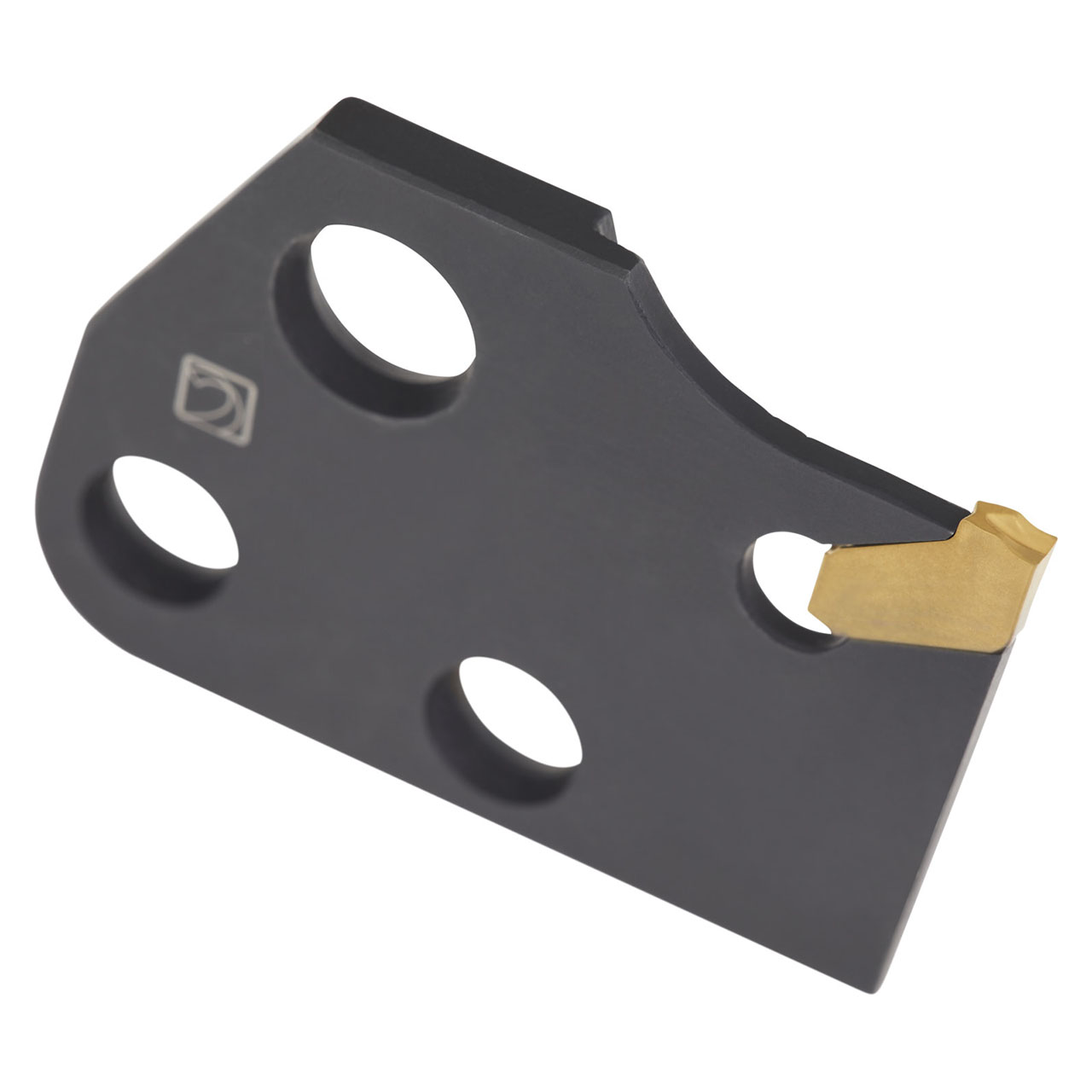

Spring clamp parting and grooving tool blade for holding a single ended insert with 1.5-1.6 mm cutting width (designation LFMX 1.5-. / LFMX 1.6-. ), tool style assembly with MS-EN.. (FH), left handed with insert parallel to the shank for a maximum grooving depth of 15 mm, for shallow and deep radial grooving, parting-off and tube parting-off.
Product Specifications
| EDP Number | 6757898 |
| Functional Height (mm) | 12 mm |
| Cutting Width (Inch) | 0.059" |
| Cutting Width (mm) | 1.5 mm |
| Max Cutting Depth (mm) | 15 mm |
| Max Cutting Depth (Inch) | 0.591" |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (mm) | 25 mm |
| Shank Height (Inch) | 0.984" |
| Functional Length (mm) | 35 mm |
| Clamping Type Code | System X |
| Hand (Cutting Direction) | Left |
| Direction of Tool | Left |
| Country of origin | Czech Republic |
