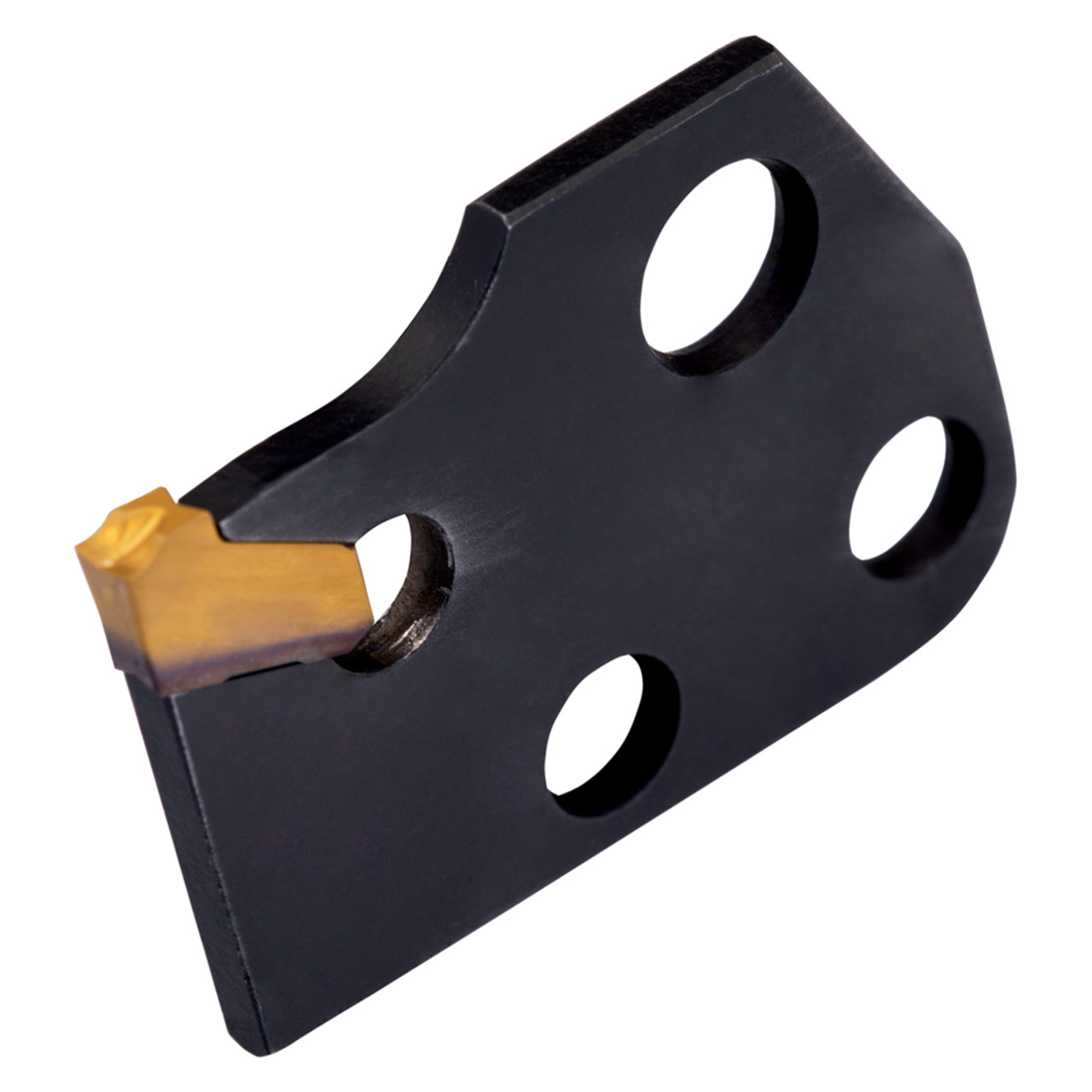

Spring clamp parting and grooving tool blade for holding a single ended insert with 3 mm cutting width (designation LFMX 3.1-. ), tool style assembly with MS-EN.. (FH), right or left hand side, insert parallel to the shank for a maximum grooving depth of 15 mm, for shallow and deep radial grooving, parting-off and tube parting-off.
Product Specifications
| EDP Number | 6756565 |
| Functional Height (mm) | 12 mm |
| Cutting Width (Inch) | 0.122" |
| Cutting Width (mm) | 3.1 mm |
| Max Cutting Depth (mm) | 15 mm |
| Max Cutting Depth (Inch) | 0.591" |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (mm) | 25 mm |
| Shank Height (Inch) | 0.984" |
| Functional Length (mm) | 35 mm |
| Clamping Type Code | System X |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
Overall Length (Inch):
2-61/64";Overall Length (Decimal Inch)=2.9530""
Overall Length (mm):
75mm
Shank Height (Inch):
15/32";Shank Height (Decimal Inch)=0.4700""
Shank Height (mm):
12mm
Shank Width/Diameter (Inch):
15/32";Shank Width/Diameter (Decimal Inch)=0.4700""
Shank Width/Diameter (mm):
12mm
Ships:
From Partner Facility
