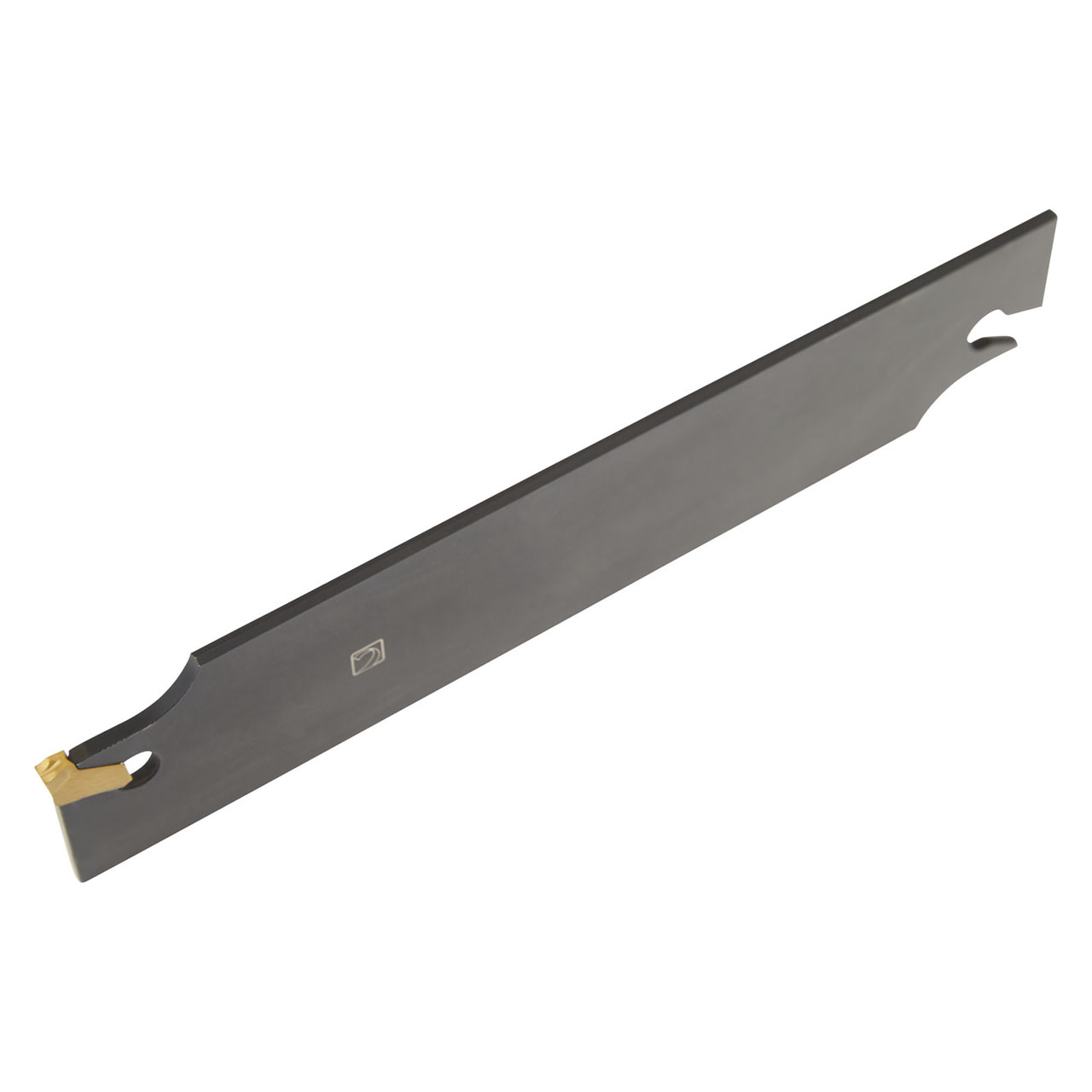

Spring clamp parting and grooving tool blade for holding a single ended insert with 2.0-2.2 mm cutting width (designation LFMX 2.0-. / LFMX 2.2-. ), tool style assembly with 32-DU.. for a maximum grooving depth of 25 mm, tool blade height 32 mm and length 150 mm for deep radial grooving, parting-off and tube parting-off.
Product Specifications
| EDP Number | 6757081 |
| Functional Height (mm) | 25 mm |
| Functional Height (Inch) | 0.984" |
| Cutting Width (Inch) | 0.079" |
| Cutting Width (mm) | 2 mm |
| Max Cutting Depth (mm) | 25 mm |
| Max Cutting Depth (Inch) | 0.984" |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (mm) | 32 mm |
| Shank Height (Inch) | 1.26" |
| Functional Length (mm) | 150 mm |
| Functional Length (Inch) | 5.906" |
| Clamping Type Code | System X |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
Cutting Direction:
Left Hand
Ships:
From Partner Facility
interval quantity:
1
