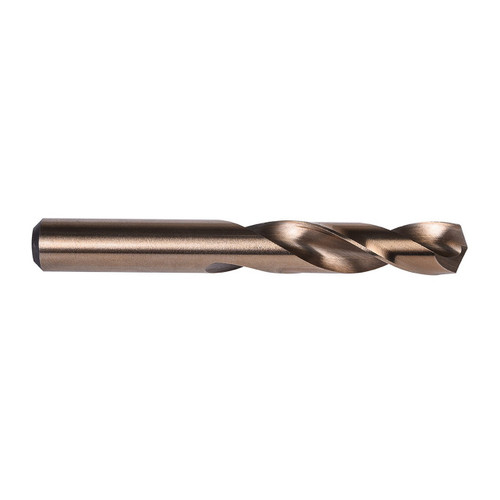

Manufactured from premium High Speed cobalt for drilling hard materials including tool steel, M41CO screw machine length drill bits have a 135 degree split point, reducing the push force needed and helping to self-center the drill. The bronze oxide finish ensures a clean, accurate hole by preventing workpiece material from sticking to the cutting surfaces of the drill. Available in wire gauge sizes from 60 to 1, M41CO screw machine length drill bits are designed for heavy duty jobs and recommended to use in difficult materials and applications.
Product Specifications
| EDP Number | 41321 |
| Material Code | HSS-E |
| Basic Standard Group | ANSI |
| Usable Length | 2.5 |
| Point Angle | 135 |
| Cutting Diameter (mm) | 4.04 mm |
| Cutting Diameter (Inch) | 0.159" |
| Overall Length (mm) | 53.98 mm |
| Overall Length (Inch) | 2.125 |
| Overall Length (Fractional Inch) | 2.1/8 |
| Length Chip Flute (Fractional Inch) | 1.1/16" |
| Hand Direction | Right |
| Drill Length | Stub |
| Coating | Bronze |
| Surface Color | Bronze |
| Surface Treatment | Steam Tempered |
| Cutting Diameter (Wire Gauge Size) | N21 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Precision Twist Drill
Drill Bit Size (Inch):
5/32"
Drill Bit Size (Decimal Inch):
0.1590"
Drill Bit Size (mm):
4.04mm
Drill Point Angle:
135°
Flute Length (Inch):
1-1/16"
Flute Length (Decimal Inch):
1.06"
Flute Length (mm):
26.99mm
Overall Length (Inch):
2-1/8"
Overall Length (Decimal Inch):
2.1250"
Overall Length (mm):
53.98mm
Material:
HSS-E
Finish/Coating:
Bronze
Cutting Direction:
Right
