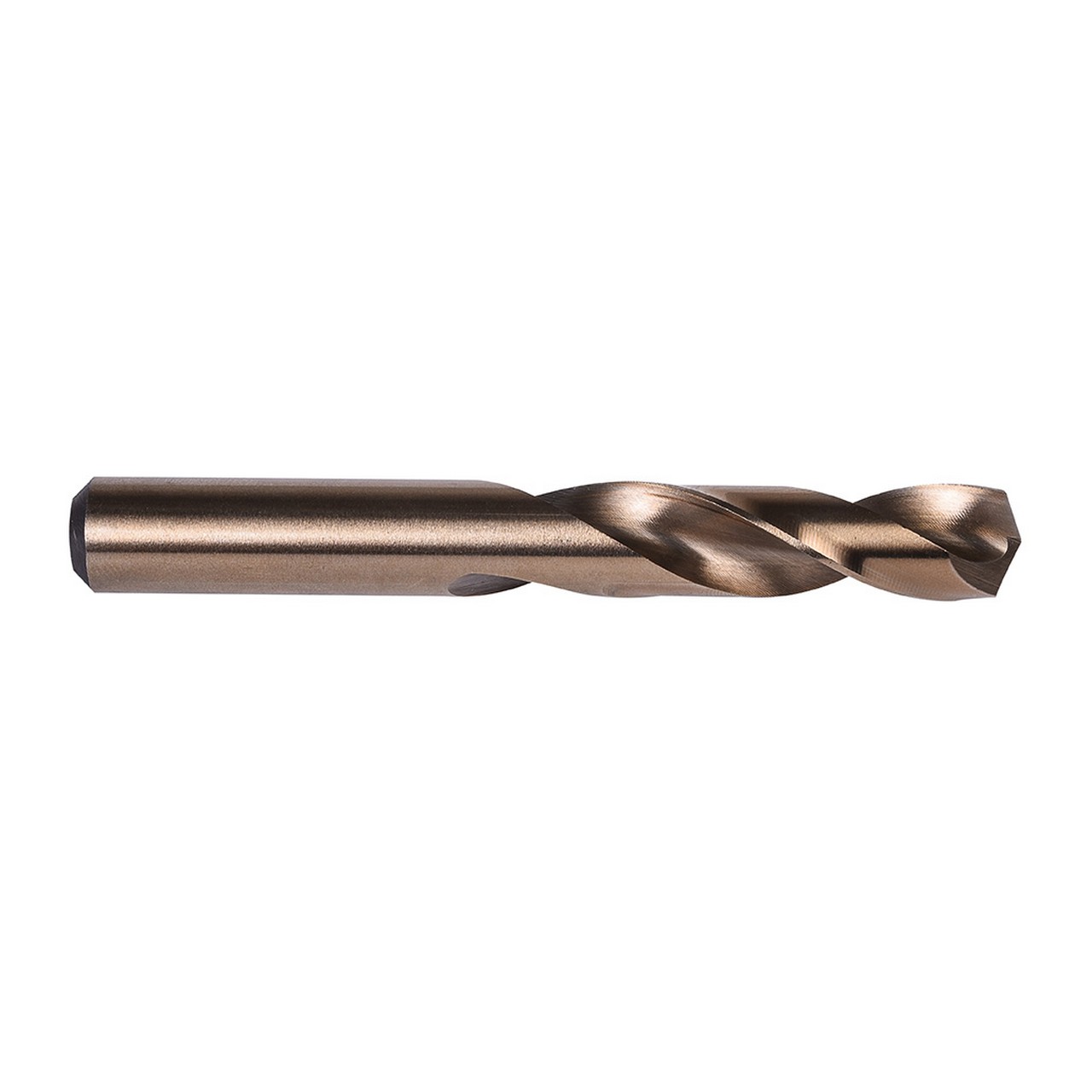

Precision Twist Drill M41CON23 | 0.154" Diameter x 135 Degree Point Angle x 2.0625" OAL Bronze Coated Screw Machine Length Drill Bit

$3.11
Ships:
From Partner Facility
Ships:
From Partner Facility
Brand:
Precision Twist Drill
Drill Bit Size (Inch):
5/32"
Drill Bit Size (Decimal Inch):
0.1540"
Drill Bit Size (mm):
3.91mm
Drill Point Angle:
135°
Flute Length (Inch):
1"
Flute Length (Decimal Inch):
1"
Flute Length (mm):
25.4mm
Overall Length (Inch):
2-1/16"
Overall Length (Decimal Inch):
2.0625"
Overall Length (mm):
52.39mm
Material:
HSS-E
Finish/Coating:
Bronze
Cutting Direction:
Right
SKU:
10035785
UPC:
86071413239
Weight:
0.14 LBS
Minimum Purchase:
12 units
Shipping:
Calculated at Checkout
Manufactured from premium High Speed cobalt for drilling hard materials including tool steel, M41CO screw machine length drill bits have a 135 degree split point, reducing the push force needed and helping to self-center the drill. The bronze oxide finish ensures a clean, accurate hole by preventing workpiece material from sticking to the cutting surfaces of the drill. Available in wire gauge sizes from 60 to 1, M41CO screw machine length drill bits are designed for heavy duty jobs and recommended to use in difficult materials and applications.

Product Specifications
EDP Number41323
Material CodeHSS-E
Basic Standard GroupANSI
Usable Length2.5
Point Angle135
Cutting Diameter (mm)3.91 mm
Cutting Diameter (Inch)0.154"
Overall Length (mm)52.39 mm
Overall Length (Inch)2.0625
Overall Length (Fractional Inch)2.1/16
Length Chip Flute (Fractional Inch)1"
Hand DirectionRight
Drill LengthStub
CoatingBronze
Surface ColorBronze
Surface TreatmentSteam Tempered
Cutting Diameter (Wire Gauge Size)N23

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
