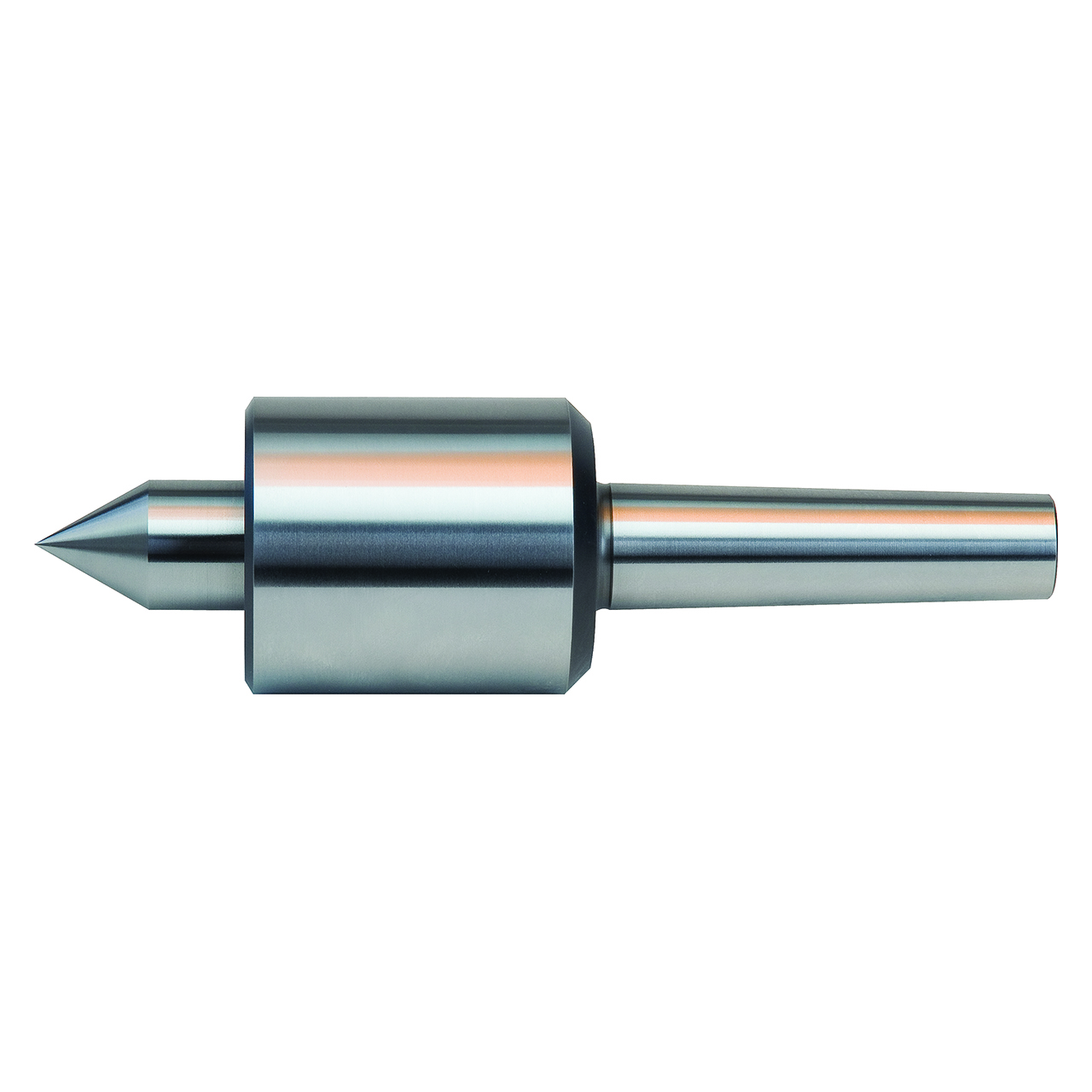

Riten 51605 | 5 Morse Taper 1.250" Diameter x 2.000" Length± 0.00005 Accuracy Tipped Live Center

$870.00 $843.90
(You save $26.10)
Brand:
Riten
Length (Inch):
2"
Length (Decimal Inch):
2.0000"
Length (mm):
50.80mm
Diameter (Inch):
1-1/4"
Diameter (Decimal Inch):
1.2500"
Diameter (mm):
31.75mm
SKU:
55003245
UPC:
Weight:
1.23 LBS
Shipping:
Free Shipping

Features:

  • Accuracy guaranteed to ± 0.00005
  • Heavy-duty, tri-bearing design
  • Points are through-hardened to 61-63 Rc
  • Full-length spindle for extra rigidity
  • Less tailstock pressure required
  • Four bearing design for superior performance
  • Body heat-treated for additional strength

Product Specifications
# MFG51605
Taper5 Morse
Accuracy± 0.00005
Point Length (Inch)2.000"
Max Workpiece Weight (lbs)4400 lbs.
Head Length (Inch)3.313"
Head Diameter (Inch)2.875"
Max RPM5500
Point Diameter (Inch)1.250"
Gage Line to Back of Head (Inch)0.375"
Point StyleStandard Point
SeriesAdvantage Live Centers

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Riten
Length (Inch):
2"
Length (Decimal Inch):
2.0000"
Length (mm):
50.80mm
Diameter (Inch):
1-1/4"
Diameter (Decimal Inch):
1.2500"
Diameter (mm):
31.75mm
