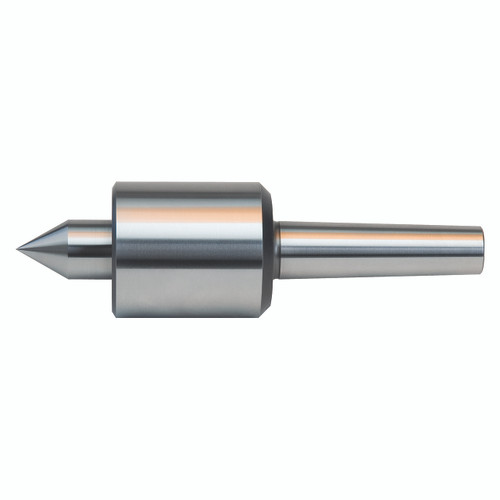

Features:
- Accuracy guaranteed to ± 0.00005.
- Meets the rigid requirements of CNC turning
- Points configuration allows for tool clearance
- Body heat-treated for additional strength

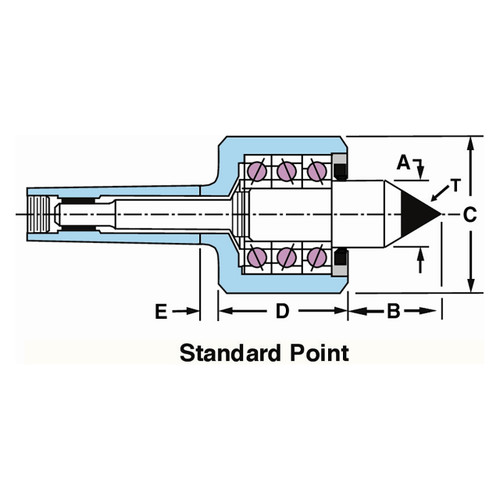

Product Specifications
| # MFG | 51693 |
| Taper | 3 Morse |
| Accuracy | ± 0.00005 |
| Point Length (Inch) | 1.125" |
| Max Workpiece Weight (lbs) | 920 lbs. |
| Head Length (Inch) | 2.375" |
| Head Diameter (Inch) | 1.750" |
| Max RPM | 5000 |
| Point Diameter (Inch) | 0.875" |
| Gage Line to Back of Head (Inch) | 0.375" |
| Carbide Tip Diameter (Inch) | 0.500" |
| Point Style | Standard (Carbide Tipped) |
| Series | Advantage (Carbide Tipped) Live Centers |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Riten
Length (Inch):
1"
Length (Decimal Inch):
1.1250"
Length (mm):
28.58mm
Diameter (Inch):
7/8"
Diameter (Decimal Inch):
0.8750"
Diameter (mm):
22.23mm
