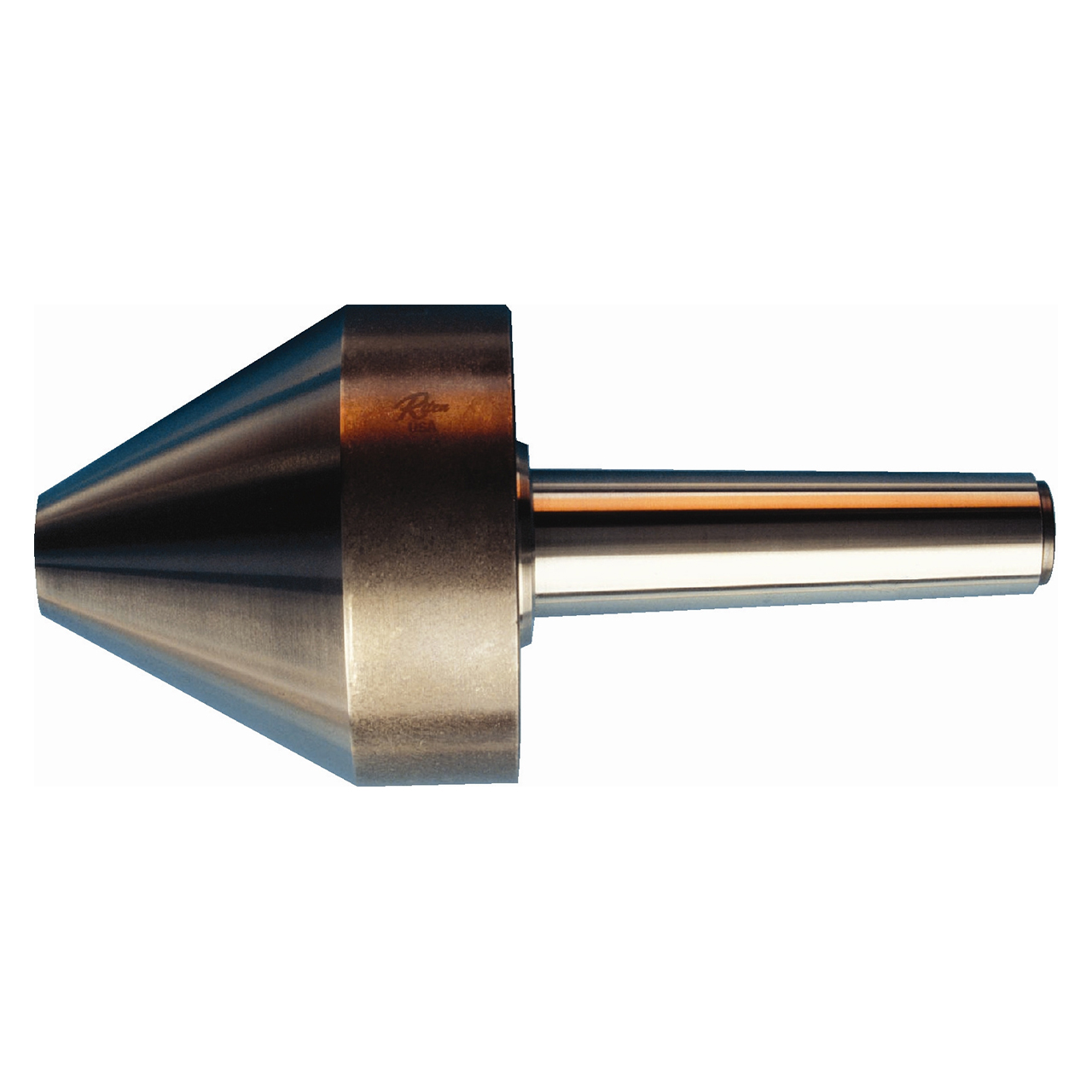

Riten Bull Nose Centers are constructed with larger bearings to carry heavier loads. The strength and alignment of the fully supported bull nose gives longer center life when machining larger workpieces. The rigidity of the center prevents vibration and chatter.
<Product Specifications
| # MFG | 56414 |
| Taper | 4 Morse |
| Accuracy | ± 0.00015 |
| Gage Line to Point (Inch) | 4.281" |
| Max Workpiece Weight (lbs) | 4800 lbs. |
| Point Diameter (Inch) | 4.000" |
| Minimum Diameter (Inch) | 1.000" |
| Gage Line to Back of Head (Inch) | 0.375" |
| Nose Style | Bull Nose |
| Series | Bull Nose Live Centers |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Riten
Diameter (Inch):
4"
Diameter (Decimal Inch):
4.0000"
Diameter (mm):
101.60mm
