Features:

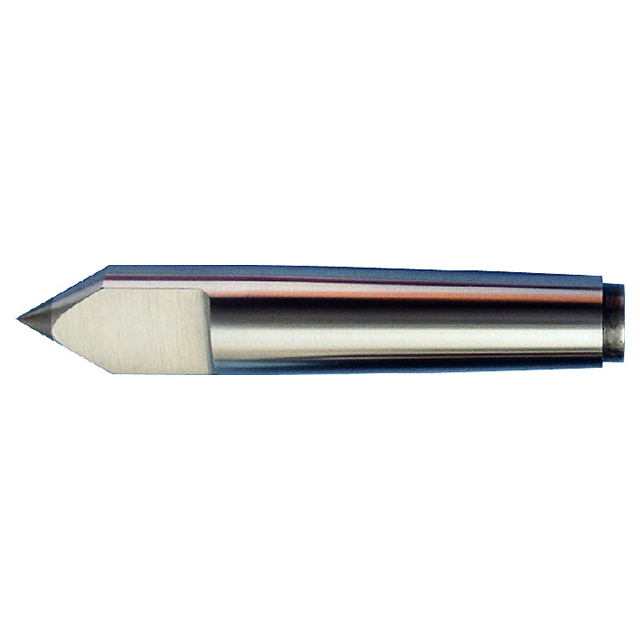

- Carbide Tipped Half Center
Product Specifications
| # MFG | 72124 |
| Taper | 12 Jarno |
| Accuracy | ± 0.00005 |
| Overall Length (Inch) | 9.000" |
| Point Diameter (Inch) | 1.500" |
| Center Style | Half Carbide Center |
| Taper Length (Inch) | 6.000" |
| D (Inch) | 1.200" |
| Carbide Tip Diameter (Inch) | 0.625" |
| Height Above Center Line (Inch) | 0.3125" |
| Length of Cut Out (Inch) | 2.250" |
| Series | Standard Length Dead Centers |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Riten
Length (Inch):
6"
Length (Decimal Inch):
6.0000"
Length (mm):
152.40mm
Overall Length (Inch):
9"
Overall Length (Decimal Inch):
9.0000"
Overall Length (mm):
228.60mm
Diameter (Inch):
1-1/2"
Diameter (Decimal Inch):
1.5000"
Diameter (mm):
38.10mm
