Product Specifications

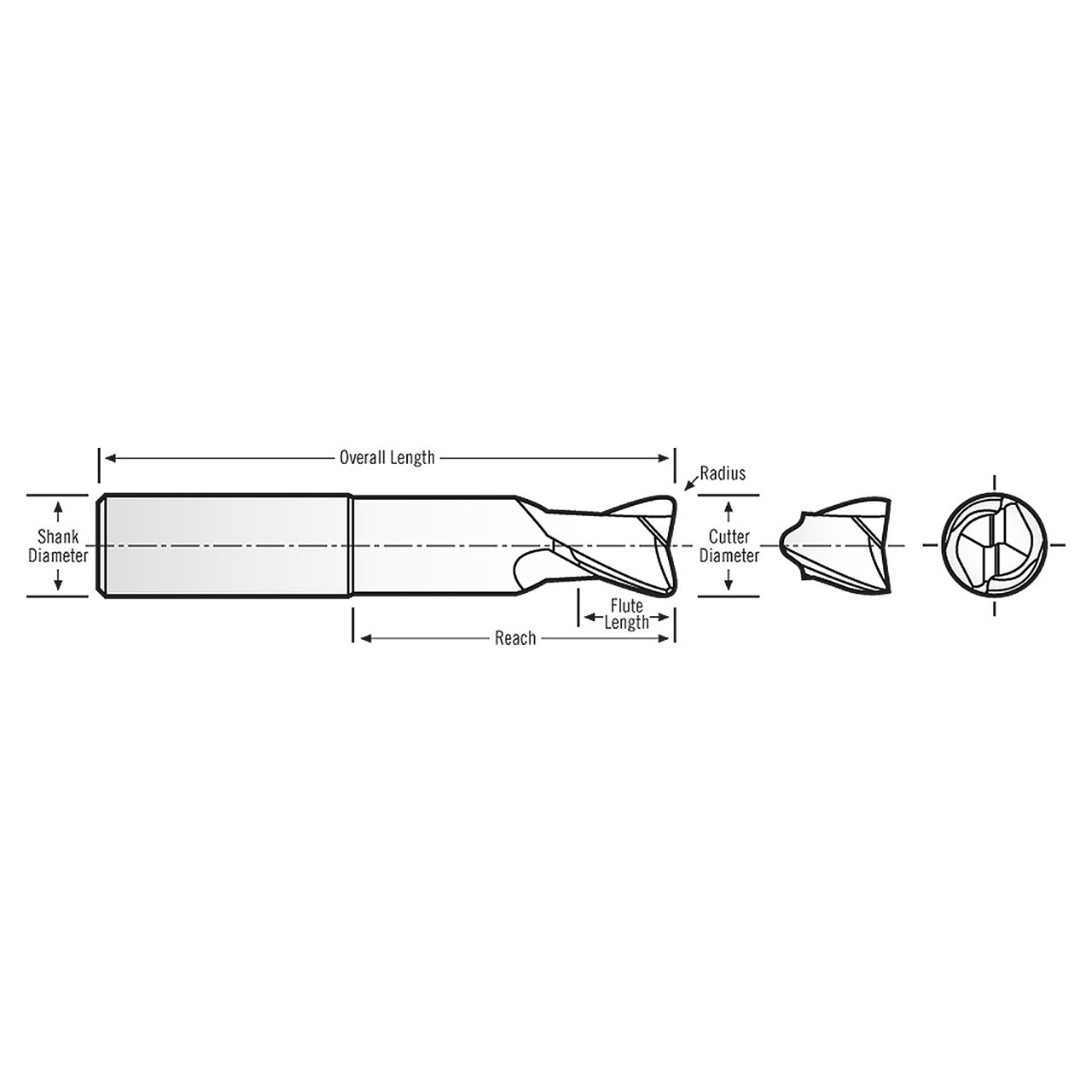

| Manufacturer Part Number | FM-204-16-060 |
| Cutting Diameter (Decimal Inch) | 0.500" |
| Shank Diameter (Decimal Inch) | 0.500" |
| Maximum Cutting of Diameter (Decimal Inch) | 0.499" |
| Overall Length (Decimal Inch) | 5.000" |
| Flute Length (Decimal Inch) | 0.500" |
| Reach Length (Decimal Inch) | 2.125" |
| Neck Diameter (Decimal Inch) | 0.475" |
| Corner Radius (Decimal Inch) | 0.060" |
| Number of Flutes | 2 |
| Helix Angle (Degree) | 40 Degree |
| Cutting Direction | Right Hand |
| Helix Direction | Right Hand |
| Series | FM-204 |
| Coating | Uncoated |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
RobbJack
Mill Diameter (Inch):
1/2"
Mill Diameter (Decimal Inch):
0.5000"
Mill Diameter (mm):
12.70mm
Number of Flutes:
2
Finish/Coating:
Uncoated
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Overall Length (Inch):
5"
Overall Length (Decimal Inch):
5.0000"
Overall Length (mm):
127.00mm
Cutting Direction:
Right Hand
