Product Specifications

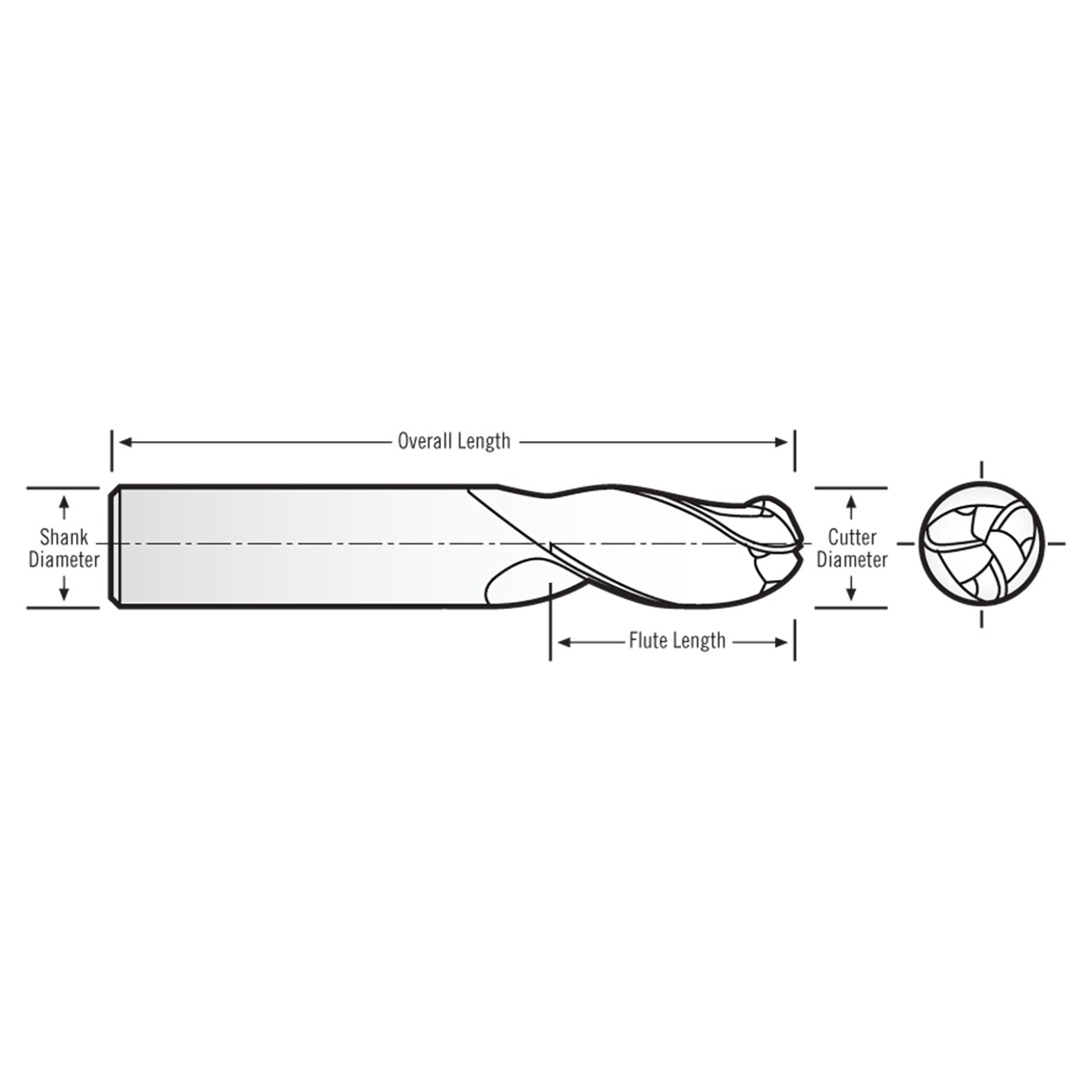

| Manufacturer Part Number | MSB-301-16 |
| Cutting Diameter (mm) | 16.00mm |
| Shank Diameter (mm) | 16.00mm |
| Maximum Cutting of Diameter (mm) | 0.63mm |
| Overall Length (mm) | 82.00mm |
| Flute Length (mm) | 20.00mm |
| Corner Radius (mm) | 8.00mm |
| Number of Flutes | 3 |
| Helix Angle (Degree) | 30 Degree |
| Cutting Direction | Right Hand |
| Helix Direction | Right Hand |
| Series | MSB-301 |
| Coating | Uncoated |
| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
RobbJack
Mill Diameter (Inch):
5/8"
Mill Diameter (Decimal Inch):
0.6300"
Mill Diameter (mm):
16.00mm
Number of Flutes:
3
Overall Length (Inch):
3-15/64"
Overall Length (Decimal Inch):
3.2300"
Overall Length (mm):
82.00mm
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6300"
Shank Diameter (mm):
16.00mm
Finish/Coating:
Uncoated
Cutting Direction:
Right Hand
Helix Angle (Degree):
30 Degree
