Product Specifications

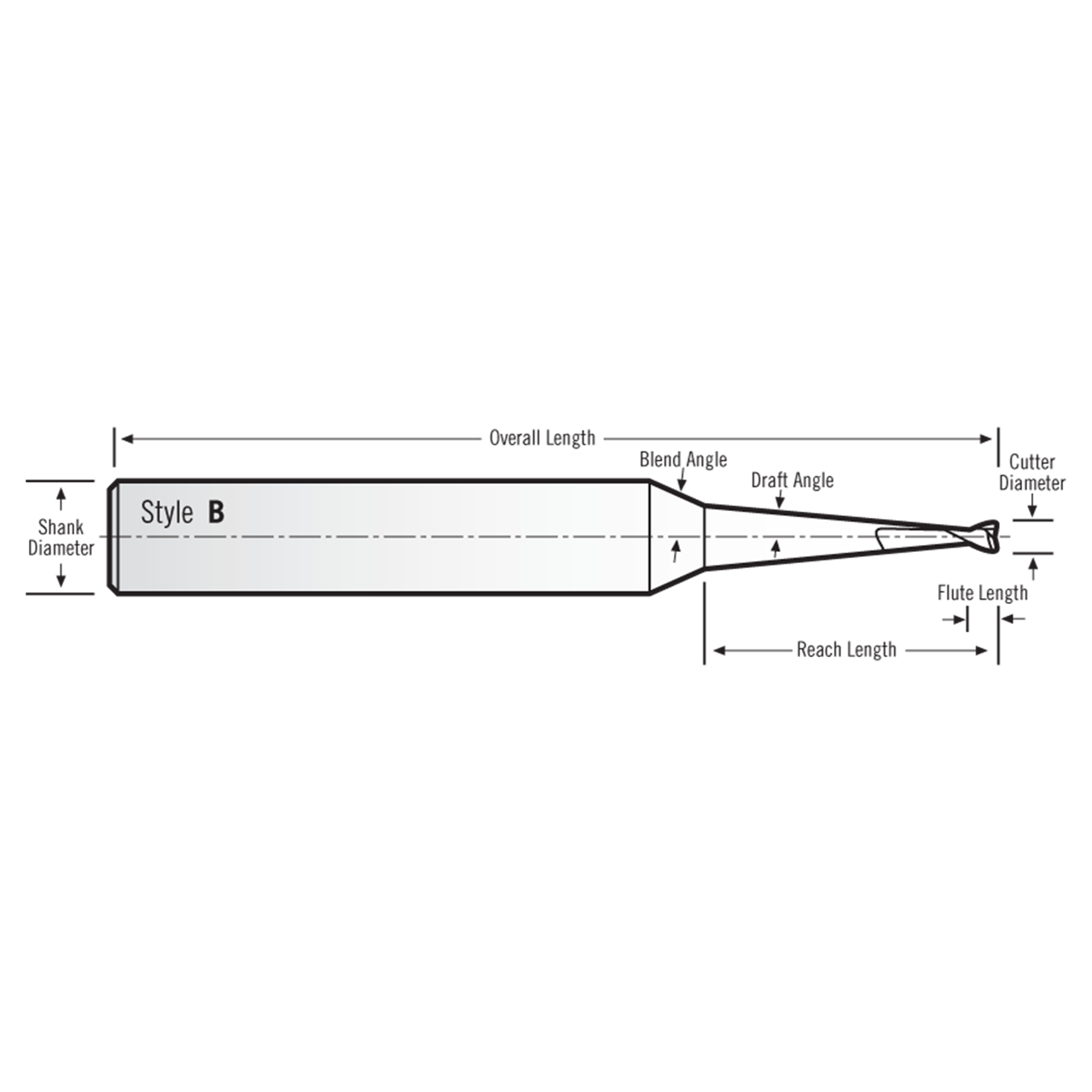

| # Manufacturer Number | MTM-203-0.8 |
| Cutting Diameter (mm) | 0.80mm |
| Shank Diameter (mm) | 6.00mm |
| Maximum Cutting Diameter (mm) | 0.03mm |
| Flute Length (mm) | 0.80mm |
| Overall Length (mm) | 63.00mm |
| Reach Length (mm) | 5.00mm |
| Neck Diameter (mm) | 0.80mm |
| 3.00mm | 0.20mm |
| Draft Angle (mm) | |
| Helix Angle (Degree) | 30 Degree |
| Helix Direction (Hand) | Right Hand |
| Cutting Direction (Hand) | Right Hand |
| Coating | AlTiN Coated |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
RobbJack
Number of Flutes:
2
Overall Reach (Inch):
13/64"
Overall Reach (Decimal):
0.2000"
Overall Reach (mm):
5.00mm
Finish/Coating:
AlTiN
Shank Diameter (Inch):
15/64"
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (mm):
6.00mm
Overall Length (Inch):
2-31/64"
Overall Length (Decimal Inch):
2.4800"
Overall Length (mm):
63.00mm
Helix Angle:
30 Degree
Cutting Direction:
Right Hand
Mill Diameter (Inch):
1/32"
Mill Diameter (Decimal Inch):
0.0314"
Mill Diameter (mm):
0.80mm
