Product Specifications
| Manufacturer Part Number | P38-005109-1 |
| Cutting Diameter (Decimal Inch) | 0.031" |
| Shank Diameter (Decimal Inch) | 0.125" |
| Overall Length (Decimal Inch) | 3.000" |
| Flute Length (Decimal Inch) | 0.094" |
| Corner Radius (Decimal Inch) | 0.005" |
| Number of Flutes | 4 |
| Helix Angle (Degree) | 30 Degree |
| Series | P38-4 |
| Coating | DCC |

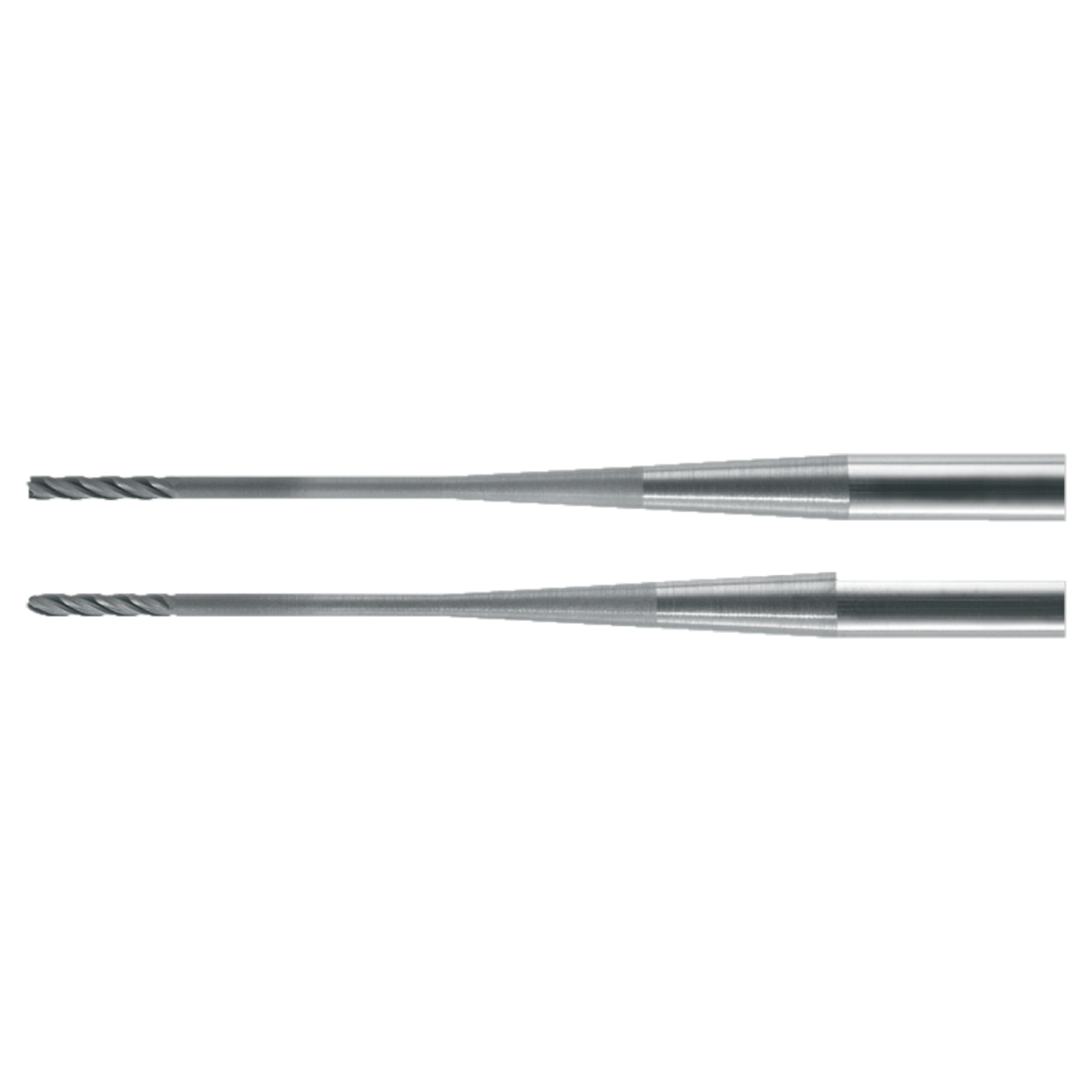

| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
RobbJack
Mill Diameter (Inch):
1/32"
Mill Diameter (Decimal Inch):
0.0310"
Mill Diameter (mm):
0.79mm
Number of Flutes:
4
Corner Radius (Decimal Inch):
0.0050"
Corner Radius (mm):
0.13mm
Finish/Coating:
DCC
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
