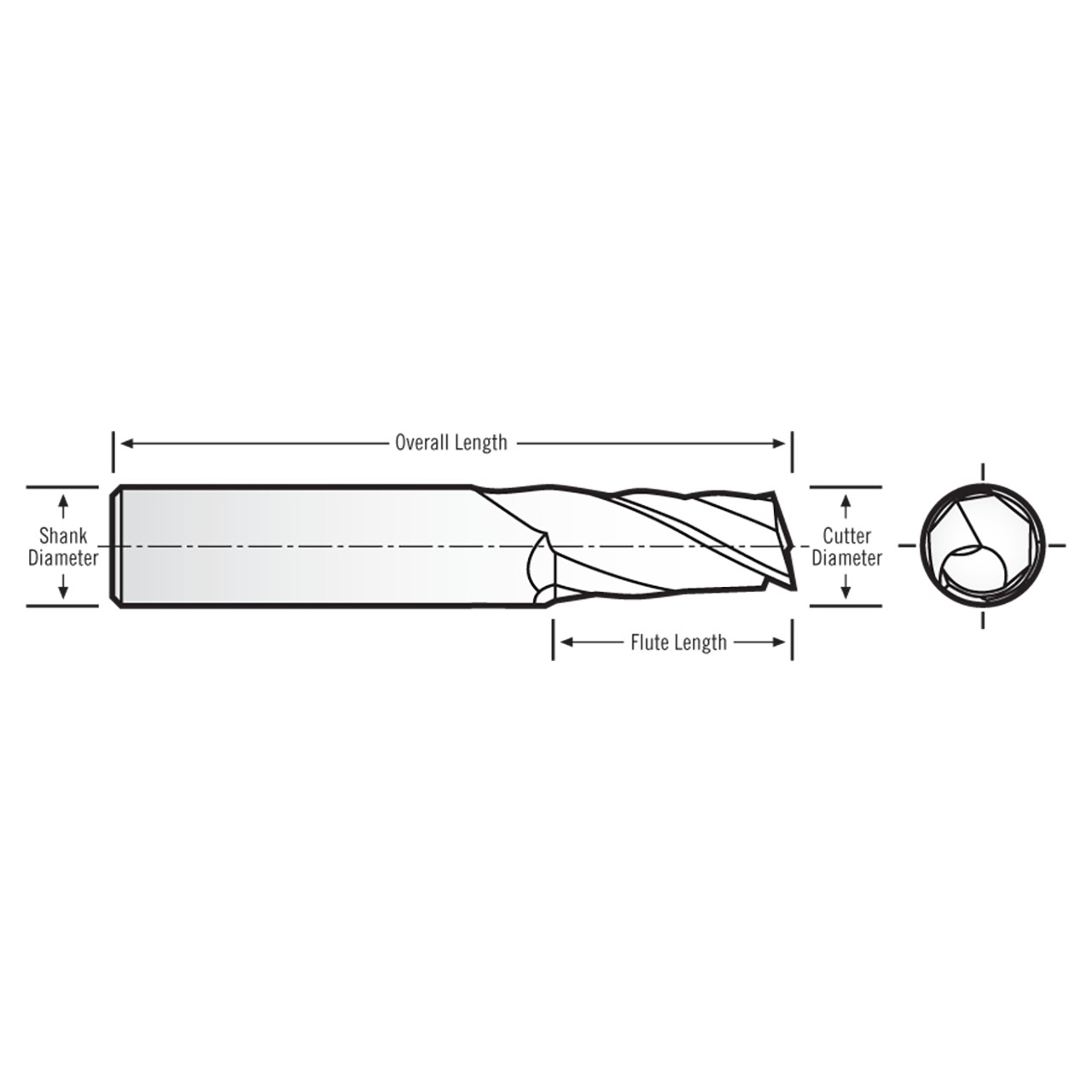

| Manufacturer Part Number | PM-116-16 |
| Cutting Diameter (Decimal Inch) | 0.500" |
| Shank Diameter (Decimal Inch) | 0.500" |
| Maximum Cutting of Diameter (Decimal Inch) | 0.500" |
| Overall Length (Decimal Inch) | 4.000" |
| Flute Length (Decimal Inch) | 1.500" |
| Number of Flutes | 1 |
| Helix Angle (Degree) | 25 Degree |
| Cutting Direction | Right Hand |
| Helix Direction | Right Hand |
| Series | PM |
| Coating | Uncoated |
| Product Type | Square End Mill |
