RobbJack T6-402-03.5-C | 0.1094" Cutting Diameter x 0.1875" Shank x 2.5000" OAL 4 Flute TiCN Coated Square End Mill

$70.17
Brand:
RobbJack
Number of Flutes:
4
Finish/Coating:
TiCN
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Helix Angle:
30 Degree
Cutting Direction:
Right Hand
Mill Diameter (Inch):
7/64"
Mill Diameter (Decimal Inch):
0.1094"
Mill Diameter (mm):
2.78mm
SKU:
25208234
Weight:
0.23 LBS
Shipping:
Calculated at Checkout
RobbJack T6-402-03.5-C | 0.1094" Cutting Diameter x 0.1875" Shank x 2.5000" OAL 4 Flute TiCN Coated Square End Mill

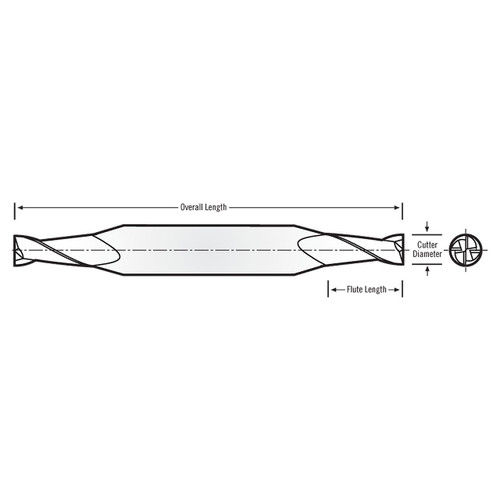

Product Specifications
# Manufacturer NumberT6-402-03.5-C
Cutting Diameter (Inch)0.1094"
Shank Diameter (Inch)0.1875"
Maximum Cutting Diameter (Inch)0.1099"
Flute Length (Inch)0.3750"
Overall Length (Inch)2.5000"
Helix Angle (Degree)30 Degree
Helix Direction (Hand)Right Hand
Cutting Direction (Hand)Right Hand
CoatingTiCN Coated
Product TypeSquare End Mill
